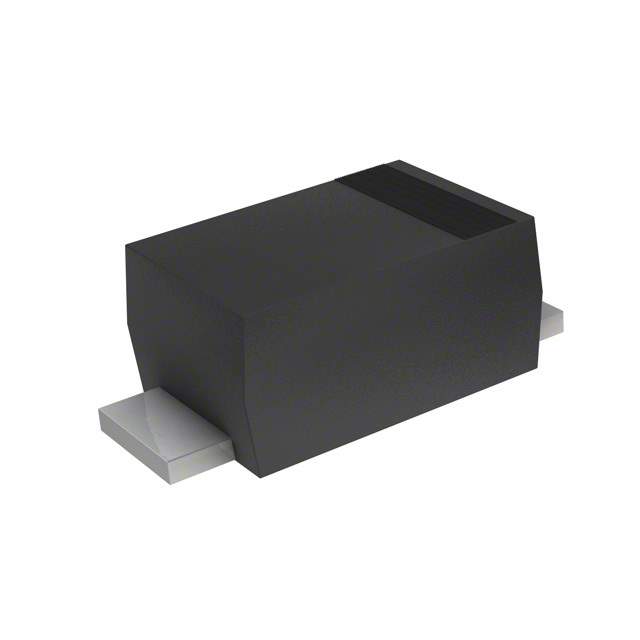

The 1N5819W-T is a Schottky barrier rectifier diode manufactured by Rectron Semiconductor. It is designed for high-frequency rectification and protection applications, offering low forward voltage drop and fast switching speeds.

Applications

• DC-DC Converters: Used in voltage regulation and power conversion circuits.
• Switching Power Supplies: Employed in switching power supplies for computers, servers, and other electronic devices.
• Reverse Polarity Protection: Used to protect circuits from reverse polarity connections.
• Free-Wheeling Diode: Applied in inductive load circuits to prevent voltage spikes.
• Solar Panel Blocking Diode: Used in solar panel systems to prevent reverse current flow.

Features

• Schottky Barrier Diode: Offers low forward voltage drop and fast switching speeds.
• Low Forward Voltage Drop: Minimizes power losses and improves efficiency.
• Fast Switching Speed: Reduces switching losses and improves overall performance.
• High Surge Current Capability: Can withstand high surge currents.
• Surface Mount Package: Available in small surface mount packages for space-constrained applications.

Benefits

• High Efficiency: Low forward voltage drop minimizes power losses.
• Improved Thermal Performance: Reduces heat generation, enhancing reliability.
• Simplified Circuit Design: Fast switching speed simplifies circuit design.
• Robust Operation: High surge current capability ensures reliable performance under transient conditions.
• Compact Design: Small surface mount package saves board space.

Specifications

Typical specifications include:

• Maximum Repetitive Reverse Voltage (VRRM): 40V (Example, verify datasheet)
• Maximum Average Forward Rectified Current (IF(AV)): 1A (Example, verify datasheet)
• Maximum Forward Voltage (VF): 0.45V (Example, verify datasheet, at IF = 1A)
• Maximum Reverse Current (IR): 0.5 mA (Example, verify datasheet, at VR = 40V)
• Operating Temperature: -65°C to +125°C (Example, verify datasheet)

Always refer to the official Rectron Semiconductor datasheet for precise electrical characteristics and application guidelines.
