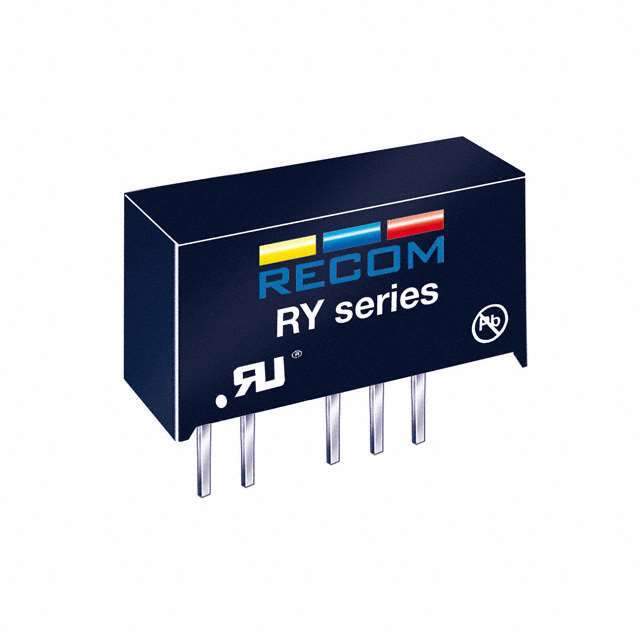

Same model may have multiple batches, images only for reference.

RY-0505D

Name: RY-0505D
Brand: Recom Power
SKU: 303466
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RY-0505D
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONV DC/DC 1W DL +/-5V OUT SIP7
Datasheet	RY-0505D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Recom Power
Series	ECONOLINE RY
Packaging	Tube
Part Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.75V
Voltage - Input (Max)	5.25V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	100mA, 100mA
Power (Watts) - Manufacture Series	1W
Voltage - Isolation	1kV (1000V)
Applications	ITE (Commercial)
Features	SCP
Mounting Style	Through Hole
Package	7-SIP Module (5 Leads)
Size / Dimension	0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Operating Temperature Range	-40°C ~ 70°C
Efficiency	58%
Power (Watts) - Max	1W
Win Source Part Number	185092-RY-0505D
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian RY-0505D CAD Model

Alternative Products

Description

The Recom Power ECONOLINE RY series DC-DC converter is an isolated module type power supply that offers a voltage output of 5V and -5V, with a maximum current output of 100mA each.

Voltage Output: 5V and -5V
Maximum Current Output: 100mA each
Voltage Isolation: 1kV
Mounting: Through-Hole
Package: 7-SIP
Leads: 5
Length: 0.77 inches
Width: 0.28 inches
Height: 0.40 inches
Operating Temperature: -40°C to 70°C
Features: SCP
Application: ITE (Commercial)
Power Rating: 1W
Efficiency: 58%
