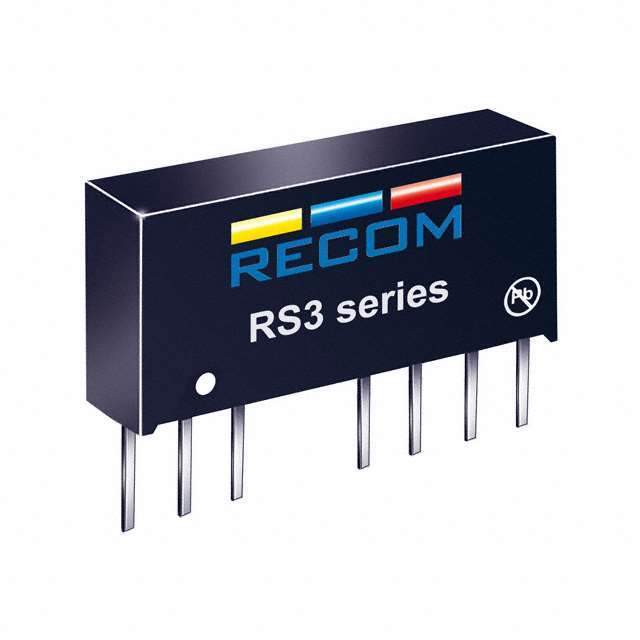

Same model may have multiple batches, images only for reference.

RS3-2409SZ/H3

Get a Quote

Part No	RS3-2409SZ/H3
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 9V 3W / Isolated Module DC DC Converter 1 Output 9V 333mA 9V - 27V Input
Datasheet	RS3-2409SZ/H3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Recom Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	27V
Voltage - Output 1	9V
Current - Output (Max)	333mA
Power (Watts)	3 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial), Medical
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	77%
Mounting	Through Hole
Case / Package	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Control Features	Enable, Active Low
Base Product Number	RS3-2409
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	10011997,945-2402-5,RS32409SZ/H3,RS3-2409SZ/H3-ND
Standard Package	22
Win Source Part Number	1335320-RS3-2409SZ/H3
Ultra Librarian 3D Model	Ultra Librarian RS3-2409SZ/H3 CAD Model

Alternative Products

Description

The Recom Power RS3-2409SZ/H3 is an isolated module DC-DC converter that comes in tube packaging.

Applications: ITE (Commercial) and Medical applications
Power: 3W
Voltage - Isolation: 3 kV
Number of Outputs: 1
Current - Output (Max): 333mA
Voltage - Input (Min): 9V
Voltage - Input (Max): 27V
Voltage - Output 1: 9V
Voltage - Output 2: None
Voltage - Output 3: None
Efficiency: 77%
Temperature Range: -40°C to 71°C
