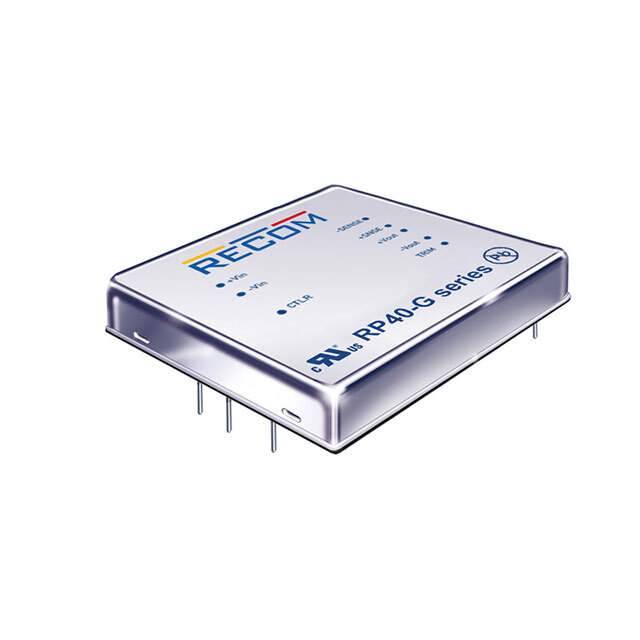

Same model may have multiple batches, images only for reference.

RP40-4815DG

Name: RP40-4815DG
Brand: Recom Power
SKU: 1335316
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	RP40-4815DG
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 40W / Isolated Module DC DC Converter 2 Output 15V -15V 1.4A, 1.4A 36V - 75V Input
Datasheet	RP40-4815DG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Recom Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	1.4A, 1.4A
Power (Watts)	40 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	87%
Mounting	Through Hole
Case / Package	9-DIP Module
Size / Dimension	2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	RP40-4815
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	30000764,RP404815DG
Standard Package	4
Win Source Part Number	1335316-RP40-4815DG
Ultra Librarian 3D Model	Ultra Librarian RP40-4815DG CAD Model

Alternative Products

Description

The Recom Power RP40-4815DG is a DC-DC converter module that is designed to deliver 40W of power.

Features: Remote on/off, overcurrent protection (OCP), overvoltage protection (OVP), short circuit protection (SCP), and under-voltage lockout (UVLO)
Size: 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm)
Applications: ITE (Commercial)
Mounting: Through-hole
Standard Package: 4
Outputs: Two outputs
Maximum Output Current: 1.4A and 1.4A respectively
Input Voltage: 36V to 75V
Output Voltage: 15V and -15V
Efficiency: 87%
Isolation Voltage: 1.6 kV
Operating Temperature: -40°C to 85°C
Compliance: RoHS3 compliant
