Same model may have multiple batches, images only for reference.

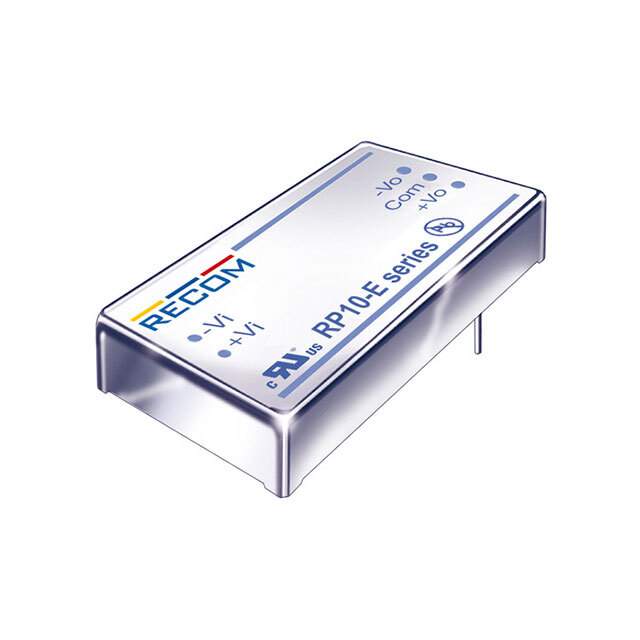

RP10-2405SE/P/M1

Get a Quote

Part No	RP10-2405SE/P/M1
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 10W / Isolated Module DC DC Converter 1 Output 5V 2A 18V - 36V Input
Datasheet	RP10-2405SE/P/M1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	POWERLINE RP10-E (10W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	2A
Power (Watts)	10 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	82%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	RP10-2405
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	31001139,RP102405SE/P/M1
Standard Package	9
Win Source Part Number	993950-RP10-2405SE/P/M1
Ultra Librarian 3D Model	Ultra Librarian RP10-2405SE/P/M1 CAD Model

Alternative Products

Description

The RP10-2405SE/P/M1 is a DC DC converter designed for power supplies - board mount applications.

Series: POWERLINE RP10-E (10W)
Type: Isolated Module
Power Rating: 10W
Maximum Current Output: 2A
Voltage Input: 18V to 36V
Voltage Output: 5V
Features: Remote On/Off, Over Current Protection (OCP), Over Voltage Protection (OVP), Short Circuit Protection (SCP)
Control Features: Enable and Active High
Voltage Isolation: 1.6kV
Outputs: One
Mounting Type: Through Hole
Package/Case: 6-DIP Module
Operating Temperature: -40°C to 85°C
