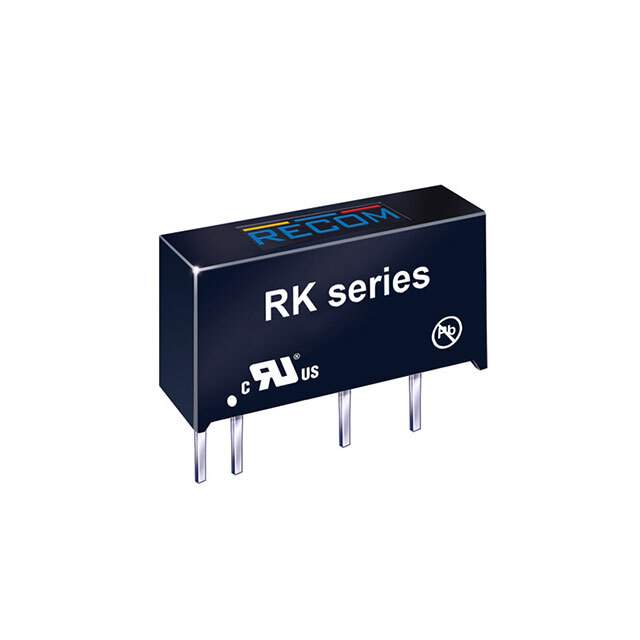

RK-0505S Real Image
Same model may have multiple batches, images only for reference.

RK-0505S

Part No RK-0505S
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet
RK-0505S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Recom Power
Series ECONOLINE RK (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial) , Medical
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Base Product Number RK-0505
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1350983-RK-0505S
Ultra Librarian 3D Model Ultra Librarian RK-0505S CAD Model

Description

The RK-0505S is an isolated module DC-DC converter with a power rating of 1W. The manufacturer is Recom Power.

  • Power: 1W
  • Applications: ITE (Commercial) and Medical
  • Voltage Isolation: 3 kV
  • Output Voltage: 5V
  • Maximum Output Current: 200mA
  • Input Voltage: 4.5V to 5.5V
  • Package: 7-SIP Module
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C
  • ROHS3: Compliant
  • REACH: Unaffected
