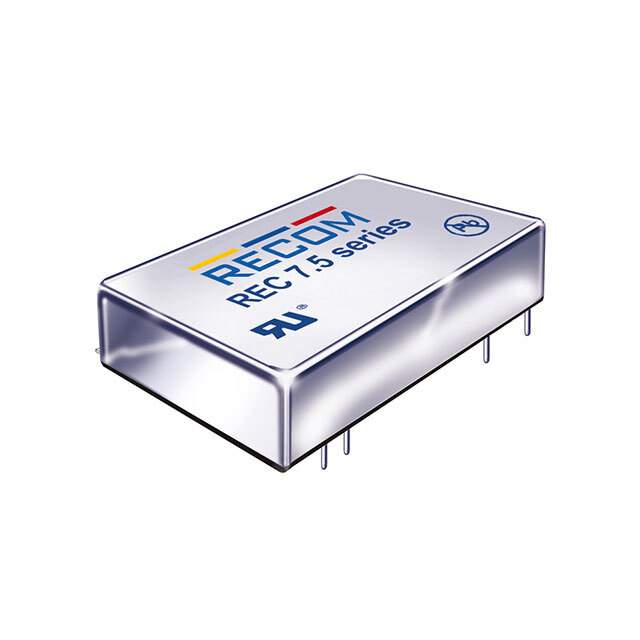

Same model may have multiple batches, images only for reference.

REC7.5-1212DRW/H2/A/M

Get a Quote

Part No	REC7.5-1212DRW/H2/A/M
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 8W / Isolated Module DC DC Converter 2 Output 12V -12V 312mA, 312mA 9V - 18V Input
Datasheet	REC7.5-1212DRW/H2/A/M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	ECONOLINE REC7.5 (7.5W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	312mA, 312mA
Power (Watts)	8 W
Voltage - Isolation	2 kV
Applications	ITE (Commercial) , Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	85%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 8 Leads
Size / Dimension	1.26" L x 0.80" W x 0.41" H (32.0mm x 20.3mm x 10.5mm)
Base Product Number	REC7.5-1212
Standard Package	15
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1350684-REC7.5-1212DRW/H2/A/M
Ultra Librarian 3D Model	Ultra Librarian REC7.5-1212DRW/H2/A/M CAD Model

Alternative Products

Description

The ECONOLINE REC7.5 (7.5W) is a DC-DC converter in an isolated module type.

Manufacturer: Recom Power
Series: ECONOLINE REC7.5
Type: Isolated Module
Applications: ITE (Commercial), Medical
Package: 24-DIP Module, 8 Leads
Size / Dimension: 1.26" L x 0.80" W x 0.41" H (32.0mm x 20.3mm x 10.5mm)
Voltage - Input: 9V ~ 18V
Voltage - Output 1: 12V
Voltage - Output 2: -12V
Current - Output: 312mA per Output
Power (Watts) - Nom: 8W
Efficiency: 85%
Voltage - Isolation: 2kV
Features: SCP
Operating Temperature: -40°C ~ 71°C
