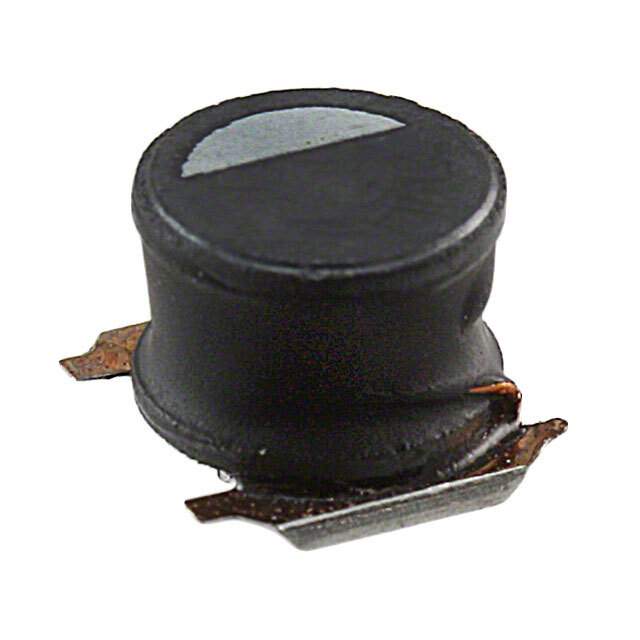

VLC6045T-680M Real Image
Same model may have multiple batches, images only for reference.

VLC6045T-680M

Part No VLC6045T-680M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 68UH 900MA 410 MOHM / SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Inductance 68μH
Tolerance ±20%
Current Rating (Amps) 900mA
Current - Saturation 900mA
Shielding Shielded
DC Resistance (DCR) 410mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812136-VLC6045T-680M
Ultra Librarian 3D Model Ultra Librarian VLC6045T-680M CAD Model

Description

TDK Corporation's VLC6045T-680M is a Wirewound type IC with shielding and SMD mounting style, manufactured by TDK Corporation.

  • Type: Wirewound IC
  • Mounting Style: SMD
  • Inductance: 68μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 410mOhm Max
  • Current Saturation: 900mA
  • Package Dimensions: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Maximum Height (Seated): 0.177" (4.50mm)
  • Operating Temperature Range: -40°C ~ 105°C
  • Manufacturer Package: Nonstandard
