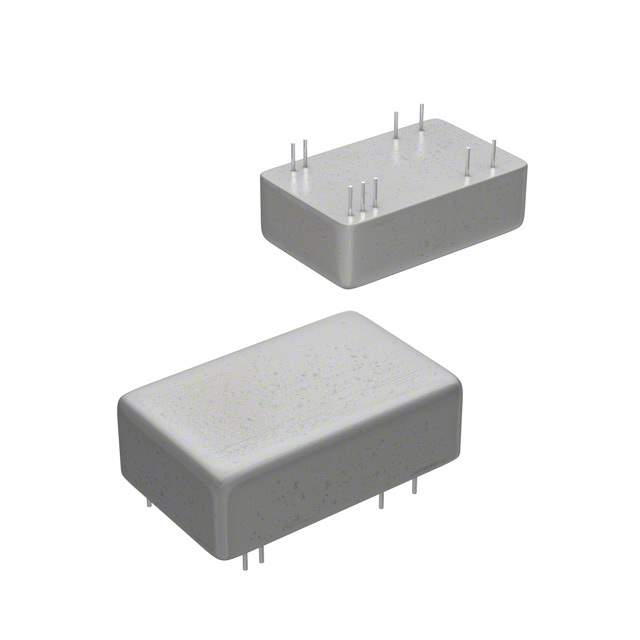

Same model may have multiple batches, images only for reference.

REC10-1212DRW/H2/A/M

Get a Quote

Part No	REC10-1212DRW/H2/A/M
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 10W / Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 9V - 18V Input
Datasheet	REC10-1212DRW/H2/A/M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	ECONOLINE REC10 (10W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	416mA, 416mA
Power (Watts)	10 W
Voltage - Isolation	2 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, SCP
Temperature Range - Operating	-40°C ~ 75°C
Efficiency	86%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 9 Leads
Dimension	1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	REC10-1212
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	11002573,945-2479,REC10-1212DRW/H2/A/M-ND,REC101212DRW/H2/A/M
Standard Package	15
Win Source Part Number	987718-REC10-1212DRW/H2/A/M
Ultra Librarian 3D Model	Ultra Librarian REC10-1212DRW/H2/A/M CAD Model

Alternative Products

Description

The Recom Power ECONOLINE REC10-1212DRW/H2/A/M is a 24-DIP module isolated DC-DC converter with a power rating of 10W.

Type: Isolated DC-DC Converter
Power Rating: 10W
Outputs: Dual
Output Voltage: 12V, -12V
Mounting: Through-Hole
Features: Remote On/Off, OCP, SCP
Application: ITE (Commercial)
Voltage Isolation: 2kV
Efficiency: 86%
Input Voltage Range: 9V to 18V
Current Output: 416mA
Dimensions: 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
