Same model may have multiple batches, images only for reference.

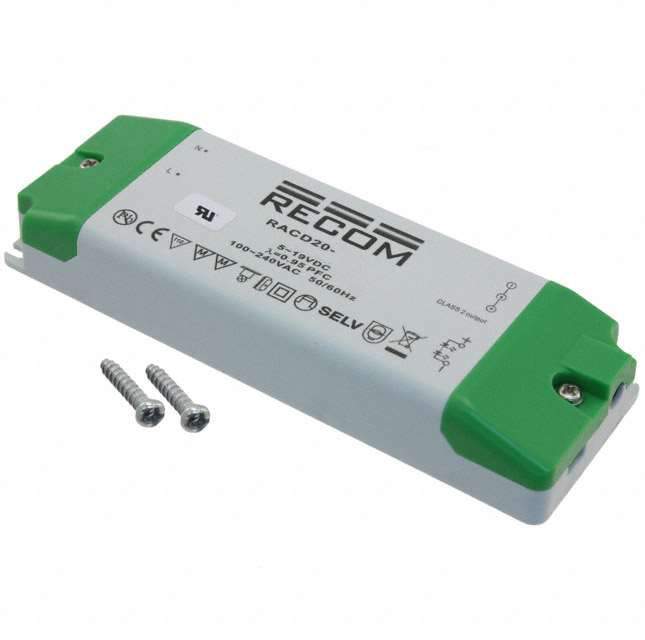

RACD20-500 Real Image
Same model may have multiple batches, images only for reference.

RACD20-500

Part No RACD20-500
Manufacturer Recom Power
Catalog Board Mount LED Drivers
Description 20W Class II AC-DC LED Power Supply
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - External/Internal (Off-Board)
Manufacturer Recom Power
Series LIGHTLINE RACD20
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Input Voltage MIN 90VAC
Voltage Input MAX 264VAC
Voltage - Output 6 ~ 40 V
Current - Output (Maximum) 500mA
Power (Watts) 20W
Voltage - Isolation 3kV (3000V)
Features OCP, OTP, OVP, SCP
Ratings IP20
Operating Temperature Range -20°C ~ 50°C
Efficiency 83%
Termination Style Terminal Block
Size 5.71" L x 1.97" W x 0.87" H (145.0mm x 50.0mm x 22.0mm)
Mounting Chassis Mount
Approvals CE, cULus, SEMKO
Weight 0.309 lb (140.16g)
Win Source Part Number 1241814-RACD20-500
Manufacturer Homepage www.recom-international.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Industrial
Family Name RACD20
Introduction Date November 25, 2010
ECCN EAR99
Country of Origin China
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian RACD20-500 CAD Model

Description

The Recom Power LIGHTLINE RACD20-500 is a high-quality power supply designed for use in a variety of electronic devices.

  • Type: Constant Current
  • Power Rating: 20W
  • Voltage Output Range: 6 ~ 40 V
  • Features: OCP, OTP, OVP, and SCP
  • Mount: Chassis Mount
  • IP Rating: IP20
  • Efficiency: 83%
