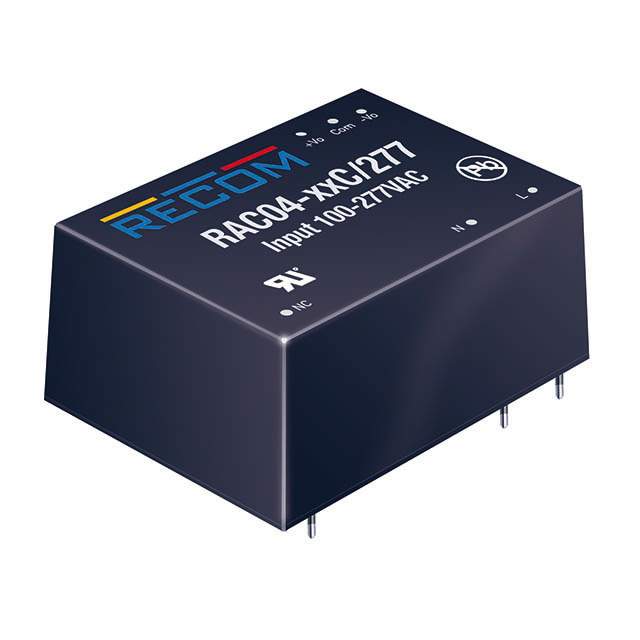

RAC04-24SC/277-E Real Image
Same model may have multiple batches, images only for reference.

RAC04-24SC/277-E

Part No RAC04-24SC/277-E
Manufacturer Recom Power
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 4W  /  Enclosed AC DC Converters 1 Output 24V 167mA 80 ~ 305 VAC Input
Datasheet
RAC04-24SC/277-E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Mfr Recom Power
Series POWERLINE RAC04-C/277 (4W)
Package Tube
Product Status Not For New Designs
Type Enclosed
Number of Outputs 1
Voltage - Input 80 ~ 305 VAC
Voltage - Output 1 24V
Current - Output (Max) 167mA
Power (Watts) 4 W
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 79%
Mounting Type Through Hole
Package / Case 7-DIP Module, 6 Leads
Dimension 1.44" L x 1.07" W x 0.67" H (36.7mm x 27.2mm x 17.1mm)
Approval Agency CB, CE, cURus
Line Regulation ±0.2%
Load Regulation 0.5%
Weight 0.091 lb (41.28 g)
Base Product Number RAC04-24
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.6001
Other Names 20001023,945-2414-5
Standard Package 12
Win Source Part Number 993496-RAC04-24SC/277-E
Ultra Librarian 3D Model Ultra Librarian RAC04-24SC/277-E CAD Model

Description

The POWERLINE RAC04-C/277 (4W) is an enclosed AC/DC converter with SCP feature.

  • Product: AC/DC Converter
  • Series: POWERLINE
  • Model: RAC04-C/277
  • Power Rating: 4 watts
  • Application: ITE (Commercial)
  • Voltage Input Range: 80 ~ 305 VAC
  • Number of Outputs: 1
  • Maximum Output Current: 167mA
  • Voltage Output: 24V
  • Efficiency: 79%
  • Line Regulation: ±0.2%
  • Load Regulation: 0.5%
  • Package: 7-DIP module, 6 leads
  • Temperature Range: -40°C ~ 80°C (With Derating)
  • Approvals: CB, CE, cURus
