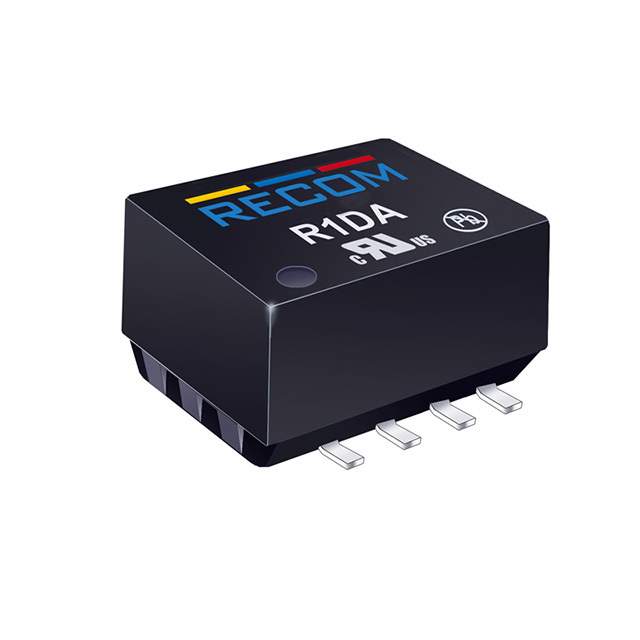

Same model may have multiple batches, images only for reference.

R1DA-120505

Name: R1DA-120505
Brand: Recom Power
SKU: 1349589
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	R1DA-120505
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 2X5V 1W / Isolated Module DC DC Converter 2 Output 5V 5V 100mA, 100mA 10.8V - 13.2V Input
Datasheet	R1DA-120505 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	ECONOLINE R1DA (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	5V
Voltage - Output 2	5V
Current - Output (Max)	100mA, 100mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	78%
Mounting Type	Surface Mount
Package / Case	10-SMD Module, 7 Leads
Size / Dimension	0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
Standard Package	33
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1349589-R1DA-120505
Ultra Librarian 3D Model	Ultra Librarian R1DA-120505 CAD Model

Alternative Products

Description

The Recom Power ECONOLINE R1DA (1W) isolated module is a power supply component designed for use in commercial applications.

Application: Commercial
Voltage Isolation: 1 kV
Number of Outputs: 2
Maximum Output Current: 100mA per Output
Input Voltage Range: 10.8V to 13.2V
Output Voltage: 5V for Both Outputs
Mounting Type: Surface Mount
Package: 10-SMD Module, 7 Leads
Features: SCP
Efficiency: 78%
Operating Temperature: -40°C to 100°C
ECCN: EAR99
Standard Package: 33
