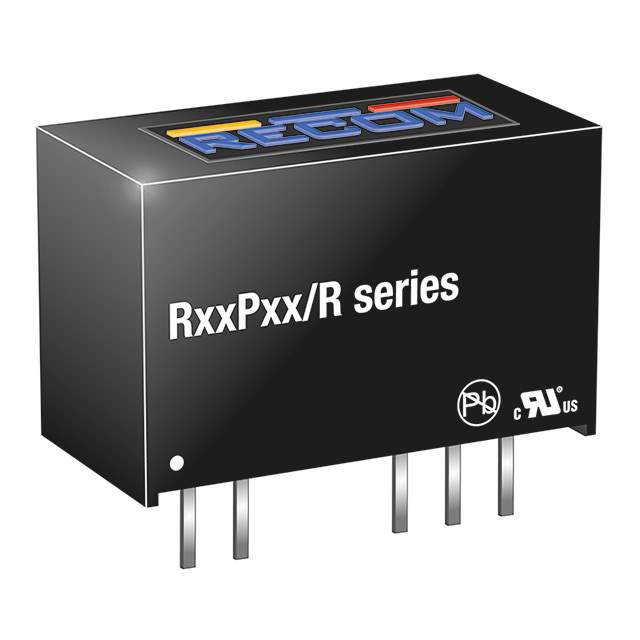

R05P05S/R6.4 Real Image
Same model may have multiple batches, images only for reference.

R05P05S/R6.4

Part No R05P05S/R6.4
Manufacturer Recom Power
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet
R05P05S/R6.4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Recom Power
Series ECONOLINE RxxPxx/R (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 6.4 kV
Applications ITE (Commercial), Medical
Temperature Range - Operating -40°C ~ 85°C
Efficiency 80%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Dimension 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm)
Base Product Number R05P05
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 945-2439,R05P05S/R6.4-ND,19900323
Standard Package 25
Win Source Part Number 1220760-R05P05S/R6.4
Ultra Librarian 3D Model Ultra Librarian R05P05S/R6.4 CAD Model

Description

The Recom Power ECONOLINE RxxPxx/R (1W) is an isolated module DC-DC converter with 1 output of 5V and a maximum output current of 200mA.

  • Output Voltage: 5V
  • Maximum Output Current: 200mA
  • Voltage Isolation: 6.4kV
  • Efficiency: 80%
  • Input Voltage: 4.5V to 5.5V
  • Package: 7-SIP Module, 4 Leads
  • Mounting Type: Through Hole
  • Temperature Range: -40°C to 85°C
  • Category: Power Supplies - Board Mount > DC DC Converters
  • Standard Package: 25
  • ECCN: EAR99
  • HTSUS Code: 8504.40.9580
  • MSL Level: 1 (unlimited)
