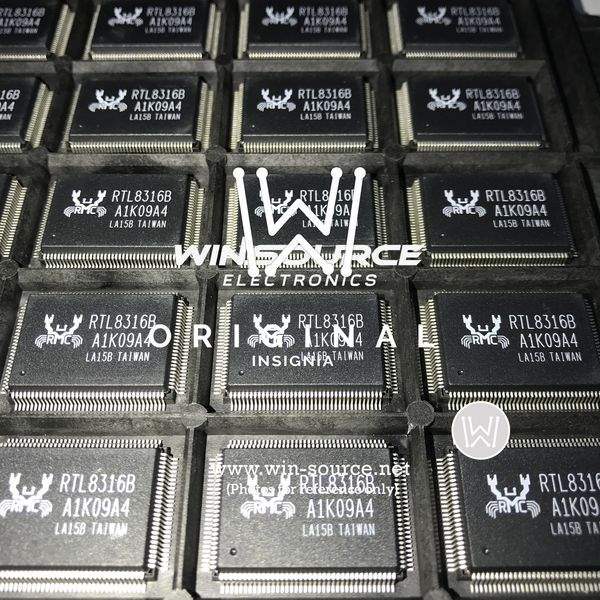

The Realtek RTL8316B-LF is a 16-port 10/100Mbps Fast Ethernet switch controller, designed for cost-effective and high-performance networking solutions. It is commonly used in SOHO (Small Office/Home Office) and small-to-medium business (SMB) environments to provide reliable network connectivity.

Applications:

• SOHO (Small Office/Home Office) Network Switches
• SMB (Small-to-Medium Business) Network Switches
• Unmanaged Ethernet Switches
• Network Hubs
• Embedded Networking Devices

Features:

• 16-Port 10/100Mbps Fast Ethernet Switch Controller
• Integrated MAC and PHY for all ports, reducing external component count
• Supports non-blocking wire-speed forwarding, ensuring efficient data transfer
• Embedded address look-up engine for fast packet routing
• Supports 8K MAC address entries, accommodating a large number of connected devices
• VLAN (Virtual LAN) support for network segmentation and enhanced security
• QoS (Quality of Service) support for prioritizing network traffic and ensuring optimal performance for critical applications
• Port-based and 802.1p-based QoS support
• IGMP (Internet Group Management Protocol) snooping for efficient multicast traffic management
• Port mirroring for network monitoring and troubleshooting
• Built-in loop detection to prevent network loops and ensure network stability
• Auto-MDI/MDIX function support, eliminating the need for crossover cables
• IEEE 802.3x flow control for full-duplex operation
• Back-pressure flow control for half-duplex operation
• Cable diagnostics function for easy troubleshooting of cable issues
• Green Ethernet power-saving features to reduce energy consumption
• Embedded EEPROM interface for configuration storage
• Supports various LED indicators for status monitoring

Benefits:

• Cost-Effective Solution: Highly integrated design reduces the bill of materials (BOM) cost, making it an economical choice for network switch applications.
• High Performance: Non-blocking architecture ensures wire-speed forwarding, providing optimal network performance even under heavy load.
• Enhanced Network Management: VLAN and QoS features enable network segmentation and prioritization of critical traffic, improving overall network efficiency.
• Improved Network Reliability: Loop detection and cable diagnostics features help prevent and resolve network issues, ensuring stable network operation.
• Reduced Power Consumption: Green Ethernet features minimize power consumption, contributing to energy savings and reducing environmental impact.
• Simplified System Design: Integrated MAC and PHY simplify board design and reduce development time.
• Increased Network Scalability: Supports a large number of connected devices with its 8K MAC address table.

Additional Details:

The RTL8316B-LF requires an external EEPROM for storing configuration settings. It also features comprehensive LED support for indicating port status, link activity, and other relevant information. Its combination of performance, features, and cost-effectiveness makes it a popular choice for a wide range of Fast Ethernet switch applications. The "LF" suffix generally indicates a lead-free package.
