Same model may have multiple batches, images only for reference.

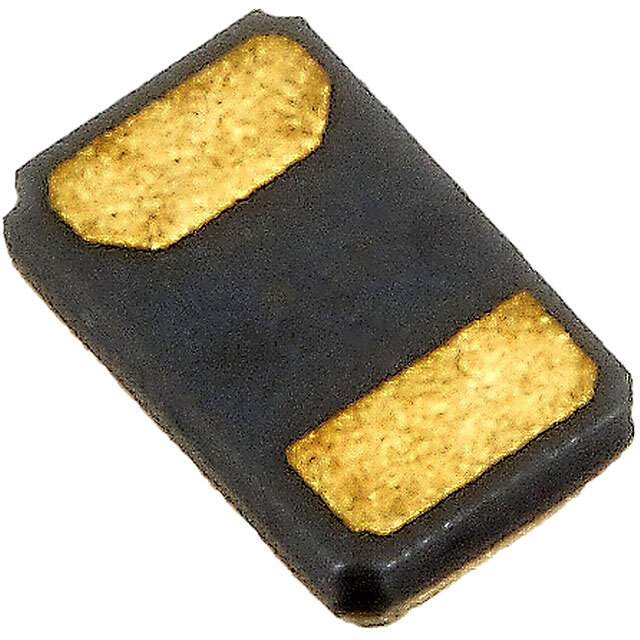

H130A-8.000-8-2030-TR Real Image
Same model may have multiple batches, images only for reference.

H130A-8.000-8-2030-TR

Part No H130A-8.000-8-2030-TR
Manufacturer Raltron Electronics Corporation
Catalog Oscillators
Description CRYSTAL 8.0000MHZ 8PF SMD / 8 MHz ±20ppm Crystal 8pF 85 Ohms 2-SMD, No Lead
Datasheet
H130A-8.000-8-2030-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Raltron Electronics
Series H130A
Package Tape & Reel
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 85 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.043" (1.10mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 2151-H130A-8.000-8-2030-TRDKR,2151-H130A-8.000-8-2030-TRCT,2151-H130A-8.000-8-2030-TR
Standard Package 1,000
Win Source Part Number 1132410-H130A-8.000-8-2030-TR
Ultra Librarian 3D Model Ultra Librarian H130A-8.000-8-2030-TR CAD Model

Description

The H130A series MHz crystal is an SMD (SMT) mounted crystal oscillator that is ideal for use in various electronic devices.

  • Frequency: 8 MHz
  • ESR: 85 Ohms
  • Frequency Stability: ±30ppm
  • Load Capacitance: 8pF
  • Operating Mode: Fundamental
  • Package: 2-SMD, No-Lead
  • Dimensions: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Operating Temperature Range: -20°C to 70°C
  • Manufacturer: Raltron Electronics
  • ECCN: EAR99
