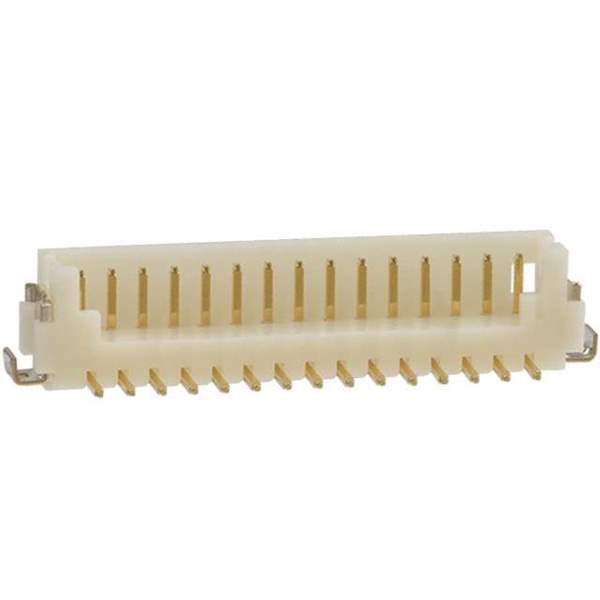

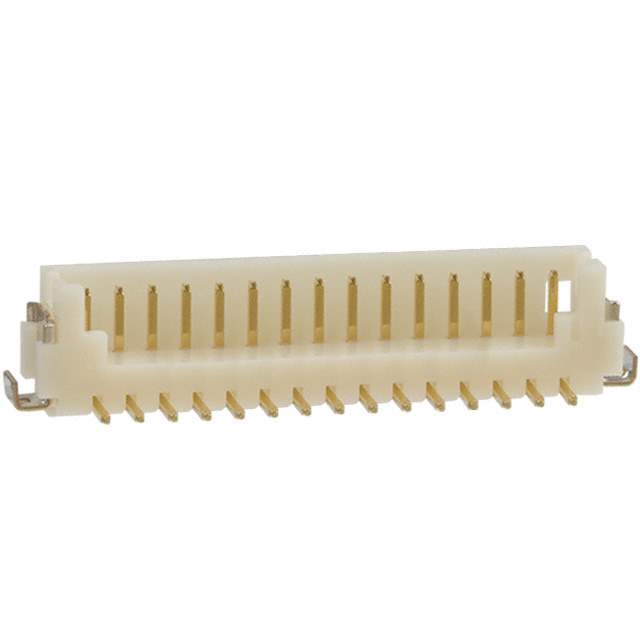

DF13B-15P-1.25V(50) Real Image
Same model may have multiple batches, images only for reference.

DF13B-15P-1.25V(50)

Part No DF13B-15P-1.25V(50)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 15POS 1.25MM / Connector Header Surface Mount 15 position 0.049" (1.25mm)
Datasheet
DF13B-15P-1.25V(50) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tube
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 15
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Mated Stacking Heights 5.8mm
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names *DF13B-15P-1.25V(50),DF13B15P125V50,H3418
Standard Package 20
Win Source Part Number 1227229-DF13B-15P-1.25V(50)
Ultra Librarian 3D Model Ultra Librarian DF13B-15P-1.25V(50) CAD Model

Description

The DF13B-15P-1.25V(50) from Hirose Electric Co Ltd is a rectangular connector header with male pins. It has 15 positions loaded and is designed with board guide and solder retention features. It is RoHS compliant and has a voltage rating of 150V. It is mounted using SMD (SMT) and has a shrouded 3 wall.
