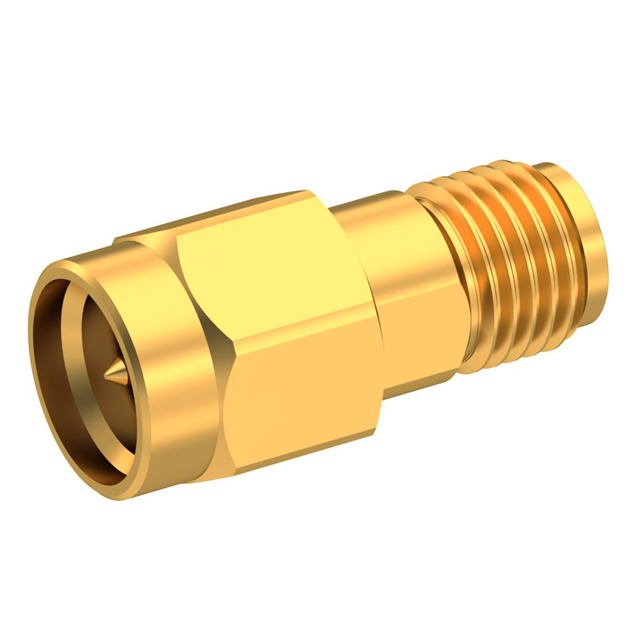

R125704000 Real Image
Same model may have multiple batches, images only for reference.

R125704000

Part No R125704000
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF)
Description SMA MF STR / Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket 50Ohm
Datasheet
R125704000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF) - Adapters
Mfr Radiall USA, Inc.
Package Bulk
Adapter Type Plug to Jack
Conversion Type Same Series
Adapter Series SMA to SMA
Center Gender Female to Male
Convert From (Adapter End) SMA Plug, Male Pin
Convert To (Adapter End) SMA Jack, Female Socket
Impedance 50Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Threaded, Threaded
Frequency - Max 18 GHz
Center Contact Plating Gold
Body Material Stainless Steel
Body Finish Gold
Center Contact Material Beryllium Copper
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles 500
Temperature Range - Operating -65°C ~ 165°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names R125.704.000,2201-R125704000
Standard Package 10
Win Source Part Number 1209996-R125704000
Ultra Librarian 3D Model Ultra Librarian R125704000 CAD Model

Description

The 1209996-R125704000 is a coaxial connector adapter designed for use in RF applications. The device is supplied by Radiall USA, Inc.

  • Frequency Range: Up to 18 GHz
  • Impedance: 50Ohm
  • Type: Plug to jack adapter
  • Style: Straight
  • Fastening Type: Threaded, Threaded
  • Package: Bulk
  • Mounting Type: Free hanging (in-line)
  • Package Type: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Supplier Device Package: TO-252AA
  • Maximum Gate Voltage: ±20V
  • Operating Temperature Range: -65°C to 165°C
  • ECCN: EAR99
  • HTSUS: 8536.69.4010
