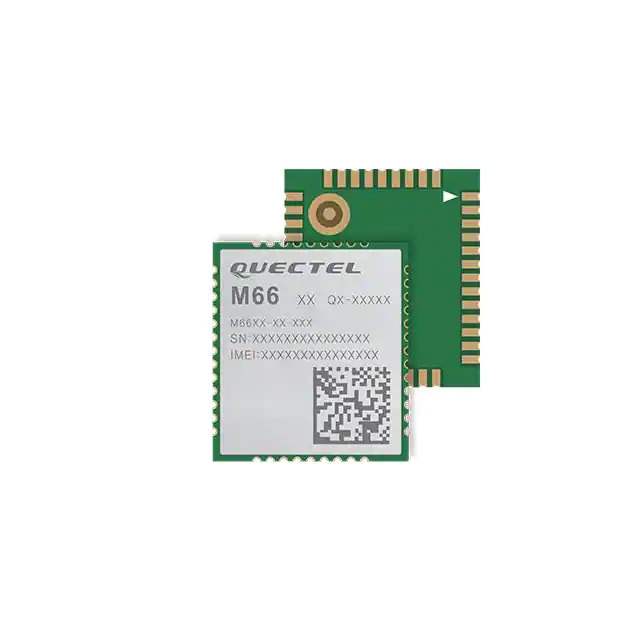

M66FA-04-STDN Real Image
Same model may have multiple batches, images only for reference.

M66FA-04-STDN

Part No M66FA-04-STDN
Manufacturer Quectel
Catalog RF Transceiver Modules
Description RF TXRX MOD BLUETOOTH/CEL SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Quectel
Package Tape & Reel
Product Status Obsolete
Programmable Not Verified
RF Family/Standard Bluetooth, Cellular
Protocol Bluetooth v3.0, GSM, GPRS
Frequency 850MHz, 900MHz, 1.8GHz, 1.9GHz
Data Rate 85.6kbps
Sensitivity -109dBm
Serial Interfaces UART
Antenna Type Antenna Not Included
Voltage - Supply 3.3V ~ 4.6V
Current - Receiving 1.3mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 52-SMD Module
Base Product Number M66
Standard Package 250 pcs
MSL Level 3 (168 Hours)
ECCN 5A992C SC
HTSUS 8517.62.0090
Win Source Part Number 846074-M66FA-04-STDN
Ultra Librarian 3D Model Ultra Librarian M66FA-04-STDN CAD Model

Description

The 846074-M66FA-04-STDN is an RF transceiver module designed for wireless communication applications.

  • Category: RF and Wireless
  • Series: (Not specified)
  • Package: Tape and reel
  • Standard Package: 250 pieces
  • Frequencies: 850MHz, 900MHz, 1.8GHz, and 1.9GHz
  • Protocols: Bluetooth v3.0, GSM, and GPRS
  • Data Rate: 85.6kbps
  • Memory Size: Not specified
  • Antenna: Not included
  • Programmability: Not verified
  • Power Output: Not specified
  • Sensitivity: Not specified
  • Serial Interfaces: UART
  • Voltage Range: 3.3V to 4.6V
  • Package Type: 52-SMD Module
  • Operating Temperature: -40°C to 85°C
  • ECCN: 5A992C SC
  • HTSUS Code: 8517.62.0090
  • Manufacturer: Quectel
  • Status: Obsolete
