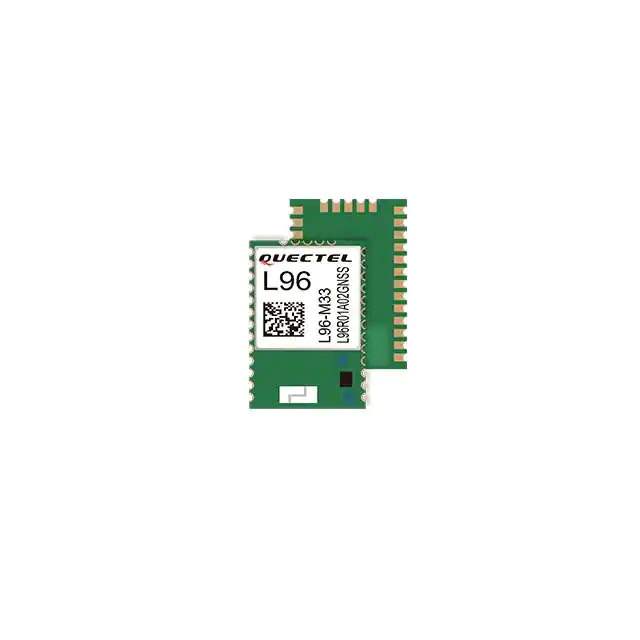

L96-M33 Real Image
Same model may have multiple batches, images only for reference.

L96-M33

Part No L96-M33
Manufacturer Quectel
Catalog RF Transceiver Modules
Description RF TXRX MOD NAV INTEG/CHIP SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Quectel
Package Tape & Reel
Product Status Active
Programmable Not Verified
RF Family/Standard Navigation
Protocol BeiDou, Galileo, GLONASS, GPS, GNSS
Frequency 1.561GHz, 1.575GHz, 1.602GHz
Data Rate 115.2kbps
Sensitivity -165dBm
Serial Interfaces I2C, UART
Antenna Type Integrated, Chip
Voltage - Supply 2.8V ~ 4.3V
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 31-SMD Module
Base Product Number L96
Standard Package 500 pcs
MSL Level 3 (168 Hours)
ECCN 7A994
HTSUS 8517.62.0090
Win Source Part Number 846559-L96-M33
Ultra Librarian 3D Model Ultra Librarian L96-M33 CAD Model

Description

The L96-M33 is an RF transceiver module and modem designed for navigation applications, manufactured by Quectel.

  • Frequencies: 1.561GHz, 1.575GHz, 1.602GHz
  • Protocols: BeiDou, Galileo, GLONASS, GPS, GNSS
  • Data Rate: 115.2kbps
  • Antenna: Integrated Chip Antenna
  • Programmable: Programmable (not verified)
  • Voltage Supply: 2.8V to 4.3V
  • Mounting: Surface Mount
  • Package: 31-SMD Module
  • Operating Temperature: -40°C to 85°C
  • ECCN: 7A994
  • Counterfeit Risk: 66% Chance
  • MSL Level: 3 (168 Hours)
  • HTSUS Code: 8517.62.0090
