Same model may have multiple batches, images only for reference.

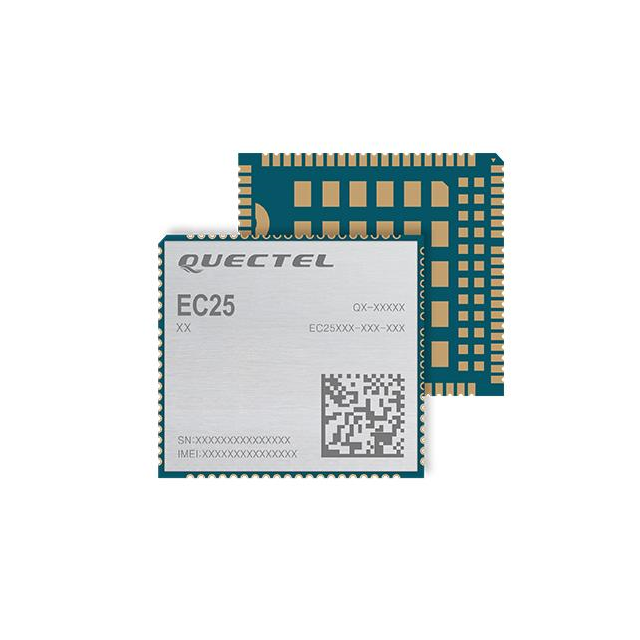

EC25AFA-512-STD Real Image
Same model may have multiple batches, images only for reference.

EC25AFA-512-STD

Part No EC25AFA-512-STD
Manufacturer Quectel
Catalog RF Transceiver Modules
Description RF TXRX MOD CELL/NAV CARD EDGE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Features Cellular, Navigation BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, LTE, WCDMA Transceiver Module 1.561GHz, 1.575GHz, 1.602GHz Antenna Not Included Card Edge
Manufacturer Quectel
Package Reel - TR
Operating Temperature Range -35°C ~ 75°C
Mounting Card Edge
Package Module
Family Name EC25
MSL Level 3 (168 Hours)
Other Part Number 2958-EC25AFA-512-STDTR, 2958-EC25AFA-512-STDDKR, 2958-EC25AFA-512-STDCT
Quantity per package 250
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 869999-EC25AFA-512-STD
Ultra Librarian 3D Model Ultra Librarian EC25AFA-512-STD CAD Model

Description

The EC25AFA-512-STD is a transceiver module from Quectel.

  • Connectivity: Cellular, navigation BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, and LTE
  • Frequencies: 1.561GHz, 1.575GHz, and 1.602GHz
  • Antenna: Not included
  • Mounting Type: Card edge
  • Package: Reel-TR
