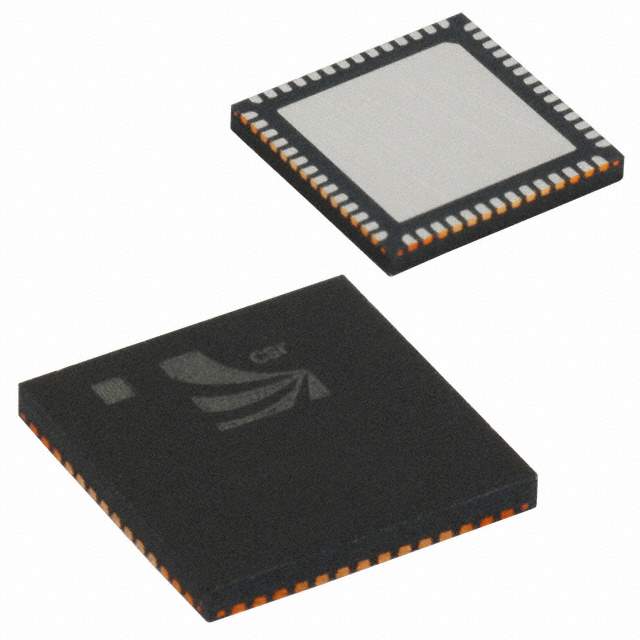

CSR1011A05-IQQA-R Real Image CSR1011A05-IQQA-R label picture CSR1011A05-IQQA-R real image CSR1011A05-IQQA-R real image3125
Same model may have multiple batches, images only for reference.
CSR1011A05-IQQA-R Real Image CSR1011A05-IQQA-R label picture CSR1011A05-IQQA-R real image CSR1011A05-IQQA-R real image3125
CSR1011A05-IQQA-R Real Image CSR1011A05-IQQA-R label picture CSR1011A05-IQQA-R real image CSR1011A05-IQQA-R real image3125
Same model may have multiple batches, images only for reference.

CSR1011A05-IQQA-R

Part No CSR1011A05-IQQA-R
Manufacturer Qualcomm
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 56VFQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer QUALCOMM
Packaging Reel - TR
Status Active
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.0
Frequency 2.4GHz
Data Rate (Max) 3.69Mbaud
Power - Output 9dBm
Sensitivity -93dBm
Memory Size 64kB RAM, 64kB ROM
Serial Interfaces I2C, SPI, UART
GPIO 35
Supply Voltage - Operating 1.2 V to 3.6 V
Current - Receiving 20mA
Current - Transmitting 18mA
Temperature Range - Operating -30°C to 85°C
Dimension 56-VFQFN Exposed Pad
Win Source Part Number 141637-CSR1011A05-IQQA-R
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian CSR1011A05-IQQA-R CAD Model

Description

CSR1011A05-IQQA-R

The CSR1011A05-IQQA-R is a cutting-edge component ideal for enhancing connectivity in digital devices. It is tailored to meet the needs of contemporary tech solutions, offering exceptional utility in its application.

  • Applications and Projects:
    • Connected healthcare devices
    • Smart home systems
    • Personal electronics
    • Remote monitoring solutions
  • Features and Benefits:
    • High data throughput for efficient processing
    • Lightweight and compact design
    • Robust security features
    • Seamless integration capabilities
  • Additional Details:
    • Operating frequency: 2.4 GHz
    • High compatibility with modern protocols
    • Backed by industry-leading innovation
