Same model may have multiple batches, images only for reference.

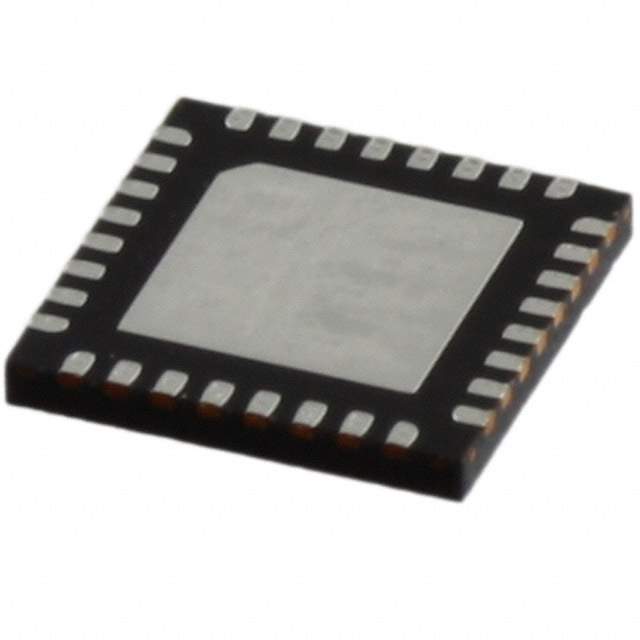

CSR1000A04-IQQM-R Real Image
Same model may have multiple batches, images only for reference.

CSR1000A04-IQQM-R

Part No CSR1000A04-IQQM-R
Manufacturer Qualcomm
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 32UFQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer QUALCOMM
Packaging Reel - TR
Status Obsolete(EOL)
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.0
Frequency 2.4GHz
Data Rate (Max) 2MBaud
Power - Output 7.5dBm
Sensitivity -92.5dBm
Memory Size 64kB RAM, 64kB ROM
Serial Interfaces I2C, SPI, UART
GPIO 15
Supply Voltage - Operating 1.2 V to 3.6 V
Current - Receiving 16mA
Current - Transmitting 16mA
Temperature Range - Operating -30°C to 85°C
Dimension 32-UFQFN Exposed Pad
Win Source Part Number 1030729-CSR1000A04-IQQM-R
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian CSR1000A04-IQQM-R CAD Model

Description

The QUALCOMM CSR1000A04-IQQM-R is a TxRx + MCU module that operates @ a frequency of 2.4GHz and uses Bluetooth v4.0 protocol.

  • Frequency: 2.4GHz
  • Protocol: Bluetooth v4.0
  • Memory Size: 64kB RAM and 64kB ROM
  • Power Output: 7.5dBm
  • Sensitivity: -92.5dBm
  • Maximum Data Rate: 2MBaud
  • Current (Receiving and Transmitting): 16mA
  • GPIO: 15
  • Serial Interfaces: I2C, SPI, and UART
  • Package: 32-UFQFN Exposed Pad
  • Operating Temperature Range: -30°C to 85°C
  • Operating Supply Voltage: 1.2V to 3.6V
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Quantity per Package: 2k pcs
