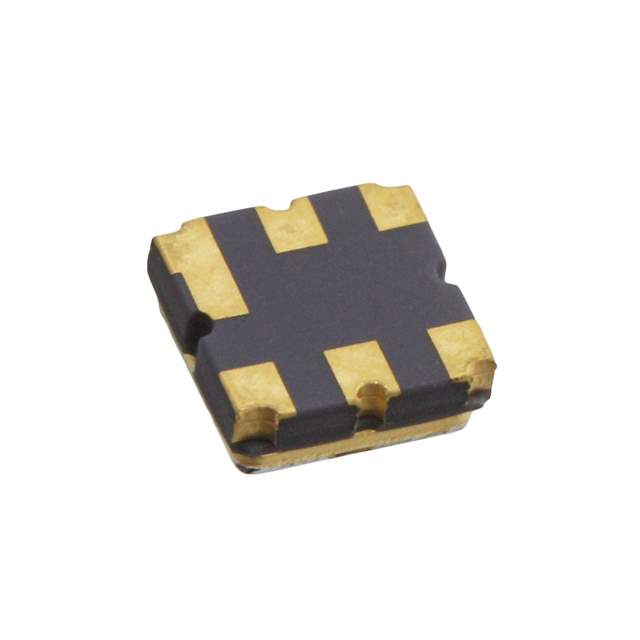

Same model may have multiple batches, images only for reference.

B39431B3748H110

Name: B39431B3748H110
Brand: Qualcomm
SKU: 769497
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B39431B3748H110
Manufacturer	Qualcomm
Catalog	SAW Filters
Description	FILTER SAW 434.42MHZ SMD / SAW Filter RF 434.42MHz 2.6dB 50Ohm SMD 6 Pin DCC6E Automotive
Datasheet	B39431B3748H110 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	Qualcomm (RF360 - A Qualcomm & TDK Joint Venture)
Packaging	Reel package
Frequency - Center	434.42MHz
Bandwidth	360kHz
Insertion Loss	1.9dB
Ratings	AEC-Q200
Applications	Remote Control
Mounting	SMD
Package	6-SMD, No Lead
Height (Maximum)	0.039" (1.00mm)
Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)
Win Source Part Number	769497-B39431B3748H110
Popularity	Medium
Supply and Demand Status	Balance
Family Name	B3748
ECCN	EAR99
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian B39431B3748H110 CAD Model

Description

The Qualcomm B3748 is a 6-SMD, no lead filter designed for remote control applications.

Bandwidth: 360kHz
Insertion Loss: 1.9dB
Center Frequency: 434.42MHz
AEC-Q200 Rated: Yes
Estimated EOL Date: 2027
Dimensions: 0.118" L x 0.118" W (3.00mm x 3.00mm)
Maximum Height: 0.039" (1.00mm)
