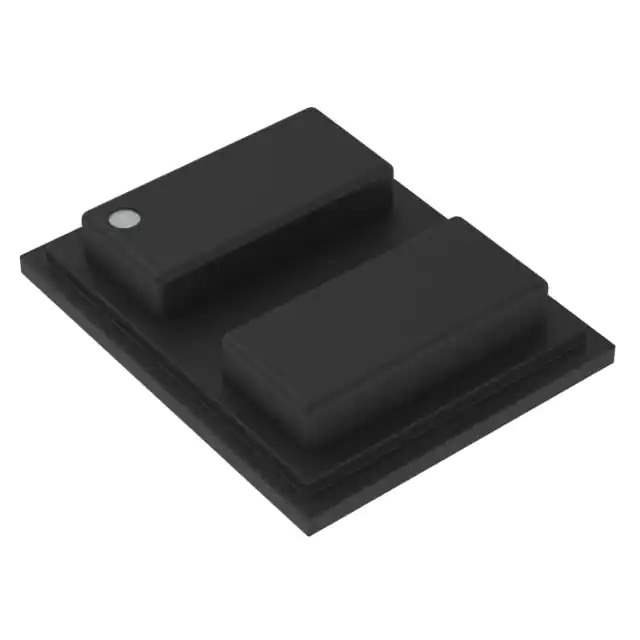

Same model may have multiple batches, images only for reference.

B39272B8016P810

Name: B39272B8016P810
Brand: Qualcomm
SKU: 863051
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B39272B8016P810
Manufacturer	Qualcomm
Catalog	SAW Filters
Description	MOBILE SAW FILTER 2016
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - SAW Filters
Mfr	Qualcomm
Package	Tape & Reel
Product Status	Obsolete
Bandwidth	70MHz
Insertion Loss	2.9dB
Applications	LTE, WLAN
Mounting Type	Surface Mount
Package / Case	9-SMD, No Lead
Height (Max)	0.018" (0.45mm)
Size / Dimension	0.079" L x 0.063" W (2.00mm x 1.60mm)
Standard Package	9,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.60.0080
Win Source Part Number	863051-B39272B8016P810
Ultra Librarian 3D Model	Ultra Librarian B39272B8016P810 CAD Model

Description

The 863051-B39272B8016P810 is a SAW filter manufactured by Qualcomm.

Application: LTE, WLAN
Mounting Type: Surface Mount
Package / Case: 9-SMD, no lead
Standard Package: 9,000 Pieces
Bandwidth: 70MHz
Insertion Loss: 2.9dB
Size / Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Max: 0.018" (0.45mm)
Product Status: Obsolete
REACH Status: Unaffected
ECCN: EAR99
MSL Level: 1
HTSUS: 8541.60.0080
Manufacturer: Qualcomm
