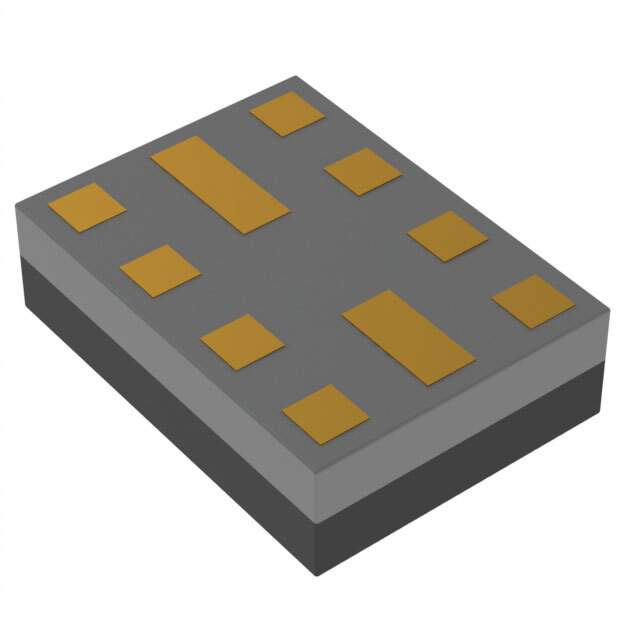

Same model may have multiple batches, images only for reference.

B39202B9815P810

Name: B39202B9815P810
Brand: Qualcomm
SKU: 769493
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B39202B9815P810
Manufacturer	Qualcomm
Catalog	SAW Filters
Description	FILTER SAW 1.9/2.0175GHZ 10SMD / SAW Filter RF 1900MHz 2dB 200Ohm SMD 10Pin
Datasheet	B39202B9815P810 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	Qualcomm (RF360 - A Qualcomm & TDK Joint Venture)
Series	B9815
Packaging	Bulk
Part Status	Obsolete(EOL)
Frequency - Center	1.9/2.0175GHz
Bandwidth	15MHz, 40MHz
Insertion Loss	1.6dB, 1.7dB
Applications	Cellular, SCDMA
Mounting	SMD
Package	10-SMD, No Lead
Height (Maximum)	0.016" (0.40mm)
Dimension	0.059" L x 0.043" W (1.50mm x 1.10mm)
Win Source Part Number	769493-B39202B9815P810
Popularity	Medium
Supply and Demand Status	Limited
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian B39202B9815P810 CAD Model

Description

The Qualcomm B9815 series filter is a 10-SMD, no-lead package designed for use in cellular and SCDMA applications.

Center Frequency: 1.9/2.0175GHz
Bandwidth: 15MHz/40MHz
Insertion Loss: 1.6dB/1.7dB
Dimensions: 0.059" L x 0.043" W (1.50mm x 1.10mm)
Maximum Height: 0.016" (0.40mm)
Part Status: Obsolete (EOL)
Estimated EOL Date: Passed
Supply and Demand Status: Limited
