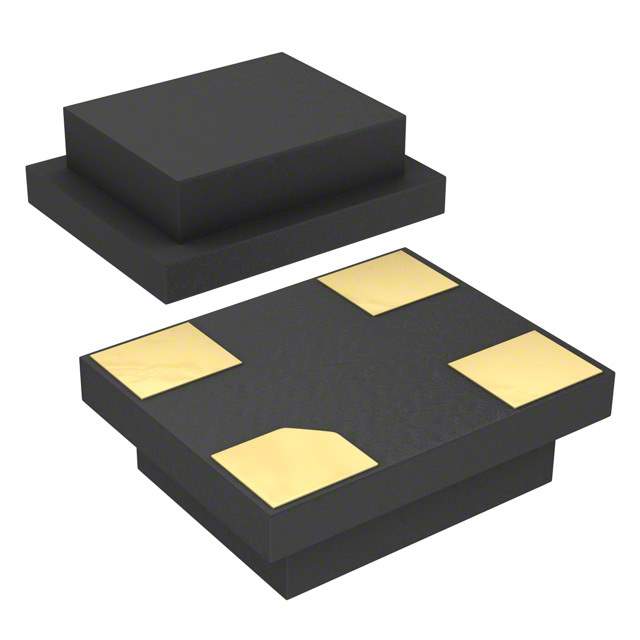

B39162B9037E910 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Filters
Manufacturer Qualcomm (RF360 - A Qualcomm & TDK Joint Venture)
Packaging Reel - TR
Status Obsolete(EOL)
Frequency - Center 1.575GHz
Bandwidth 2MHz
Insertion Loss 0.9dB
Applications GPS
Mounting SMD (SMT)
Height (Max) 0.027" (0.68mm)
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Win Source Part Number 1021872-B39162B9037E910
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B39162B9037E910 CAD Model

Description

The B39162B9037E910 is a GPS filter manufactured by Qualcomm (RF360 - A Qualcomm & TDK Joint Venture).

  • Insertion Loss: 0.9dB
  • Bandwidth: 2MHz
  • Frequency Center: 1.575GHz
  • Dimension: 0.079 inches L x 0.063 inches W (2.00mm x 1.60mm)
  • Maximum Height: 0.027 inches (0.68mm)
  • Lifecycle Status: Obsolete (EOL)
  • Popularity: Medium
