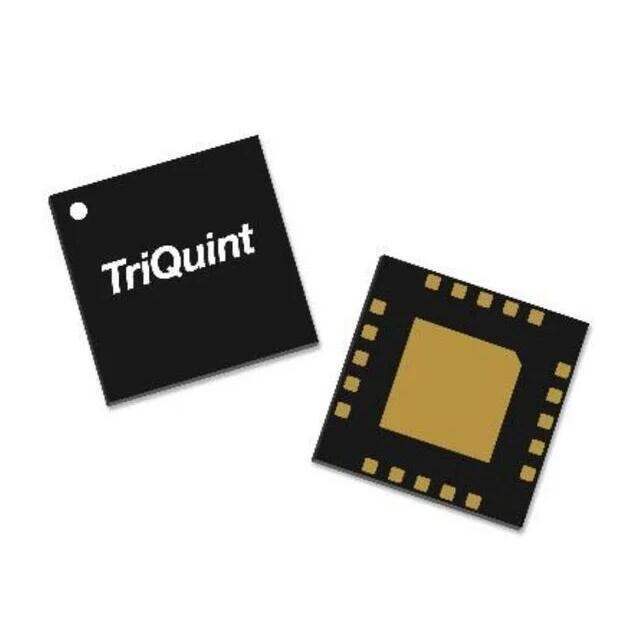

TQP9109

Part No TQP9109
Manufacturer Qorvo US Inc.
Catalog RF Amplifiers
Description 1800-2700 MHZ,0.5 W,2-STAGE LINE
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

The TQP9109 is a high efficiency two-stage driver amplifier in a low-cost surface-mount package. The amplifier is able to achieve high performance with +46 dBm OIP3 and +27.5 dBm P1dB while only consuming 245 mA current. The linear amplifier integrates two high performance amplifier stages onto a module to allow for a compact system design. The input is internally matched and the amplifier only requires minimal external components for operation. The integrated interstage match minimizes performance variation that would otherwise be attributed to external matching component value and placement tolerances.
