Same model may have multiple batches, images only for reference.

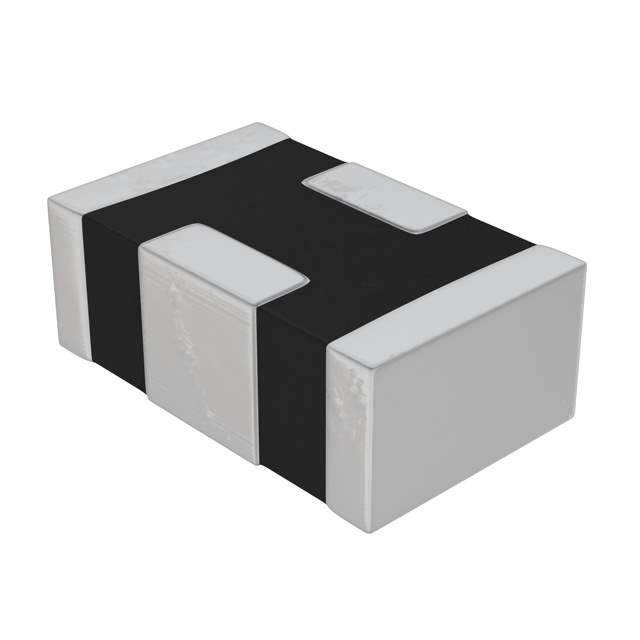

CX0805MRX7R0BB152 Real Image
Same model may have multiple batches, images only for reference.

CX0805MRX7R0BB152

Part No CX0805MRX7R0BB152
Manufacturer PulseLarsen Antennas
Catalog Ceramic Capacitors
Description CAP X2Y X7R 0805 1.5NF 100V / 1500 pF ±20% 100V Ceramic Capacitor X7R 0805 (2012 Metric)
Datasheet
CX0805MRX7R0BB152 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr PulseLarsen Antennas
Series X2Y®
Package Tape & Reel (TR)
Capacitance 1500 pF
Tolerance ±20%
Voltage - Rated 100V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL (X2Y)
Applications Bypass, Decoupling
Mounting Type Surface Mount, MLCC
Package / Case 0805 (2012 Metric)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Thickness (Max) 0.037" (0.95mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Names 1837-CX0805MRX7R0BB152TR
Standard Package 4,000
Win Source Part Number 1053767-CX0805MRX7R0BB152
Ultra Librarian 3D Model Ultra Librarian CX0805MRX7R0BB152 CAD Model

Description

The PulseLarsen Antennas CX0805MRX7R0BB152 is a ceramic capacitor from the X2Y series manufactured by PulseLarsen Antennas. It has a capacitance of 1500 pF, a voltage rating of 100 V, and a tolerance of ±20%. The capacitor is designed for bypass and decoupling applications and has a low equivalent series inductance (ESL) due to its X2Y feature. It is RoHS compliant and can operate at a temperature range of -55°C to 125°C. The capacitor has an 0805 (2012 metric) package and is surface mountable.
