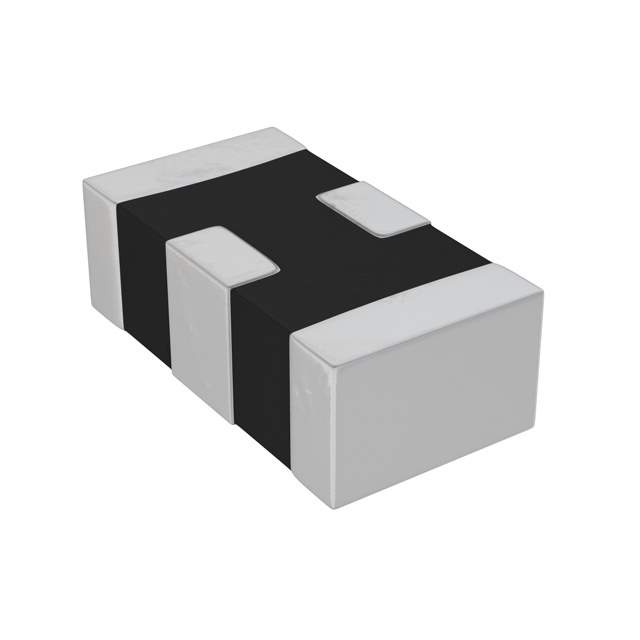

The CX0603MRX7R9BB152 is a multilayer ceramic capacitor (MLCC) manufactured by PulseLarsen Antennas. MLCCs are passive components widely used in electronic circuits for energy storage, filtering, and decoupling. The 0603 indicates the component's size (0.06 inch x 0.03 inch), making it a small, surface-mountable device. The 'MRX7R9BB' portion specifies the dielectric material, voltage rating, and capacitance tolerance. 152 represents a capacitance value of 1500 pF (15 x 10^2 pF).

Applications:

• Decoupling capacitors in power supplies
• Filtering capacitors in signal processing circuits
• Bypass capacitors in digital circuits
• Timing circuits
• RF and microwave circuits
• Consumer electronics (smartphones, tablets, laptops)

Features:

• Small 0603 case size.
• High capacitance value (1500 pF).
• X7R dielectric material (stable over temperature).
• Surface mount technology (SMT) compatible.
• RoHS compliant.

Benefits:

• Provides stable and reliable performance in a variety of applications.
• Reduces noise and interference in electronic circuits.
• Improves the performance and efficiency of electronic devices.
• Saves board space due to its small size.
• Easy to assemble using standard SMT techniques.

Additional Details:

The X7R dielectric material offers a good balance of capacitance stability and temperature performance, making it suitable for a wide range of general-purpose applications. The voltage rating is crucial for ensuring the capacitor's reliability and preventing failure. The capacitance tolerance indicates the acceptable variation in the actual capacitance value. Consult the PulseLarsen Antennas datasheet for detailed specifications, including voltage rating, capacitance tolerance, temperature coefficient, and ESR (Equivalent Series Resistance).
