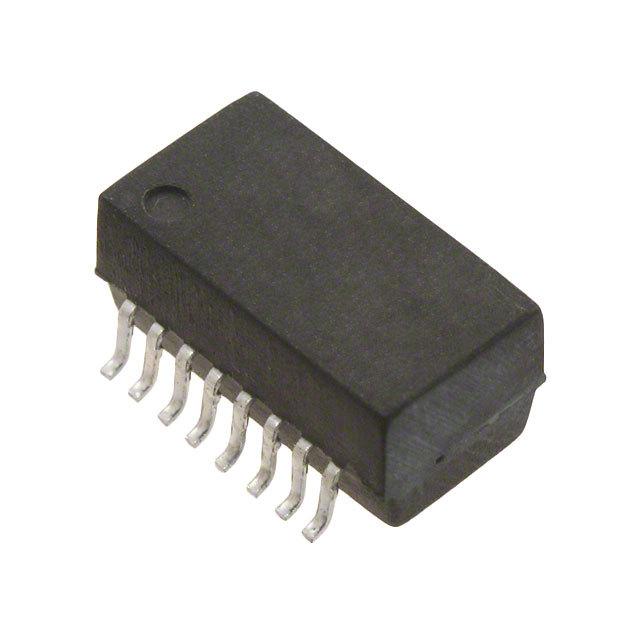

T1137NL Pulse
Same model may have multiple batches, images only for reference.

T1137NL

Part No T1137NL
Manufacturer Pulse
Catalog Pulse Transformers
Description TRANSFORMER TELECOM DUAL T1/E2 / 1.2mH, 1.2mH T1/E1 (Dual) Pulse Transformer 1CT:2.42CT, 1CT:2.42CT Surface Mount
Datasheet
T1137NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type T1/E1 (Dual)
Inductance 1.2mH, 1.2mH
Mounting Type Surface Mount
Size / Dimension 0.505" L x 0.280" W (12.83mm x 7.11mm)
Height - Seated (Max) 0.245" (6.22mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 351038-T1137NL
Ultra Librarian 3D Model Ultra Librarian T1137NL CAD Model

Description

The 351038-T1137NL is a pulse transformer used in T1/E1 (Dual) applications.

  • Mounting: It is a surface mount component.
  • Size: 0.505" L x 0.280" W (12.83mm x 7.11mm).
  • Inductance: 1.2mH.
  • Height: 0.245" (6.22mm) when seated.
  • Operating Temperature Range: 0°C to 70°C.
  • Status: An active product from the manufacturer Pulse.
  • Application: This pulse transformer is commonly used in telecommunications and networking applications.
