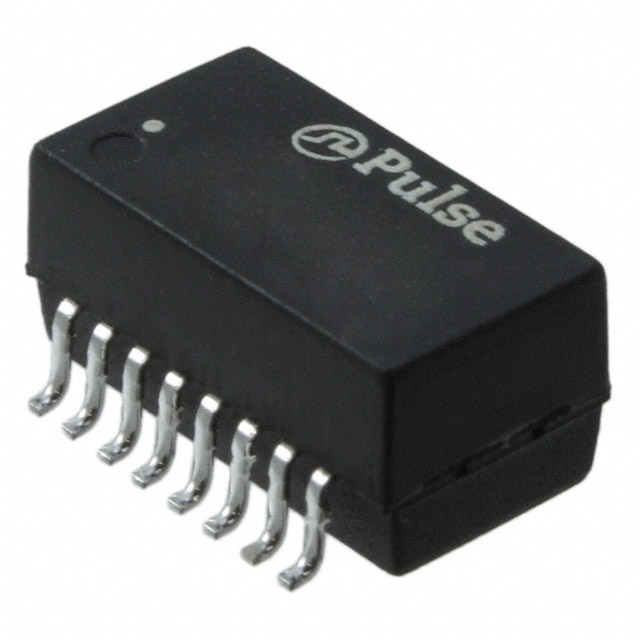

T1096NL Pulse
Same model may have multiple batches, images only for reference.

T1096NL

Part No T1096NL
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR 1CT:1.41CT/1CT:1.41CT SMD / 1mH, 1mH T1/E1 (Dual) Pulse Transformer 1CT:1.41CT, 1CT:1.41CT Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type T1/E1 (Dual)
Inductance 1mH, 1mH
Mounting Type Surface Mount
Size / Dimension 0.505" L x 0.280" W (12.83mm x 7.11mm)
Height - Seated (Max) 0.245" (6.22mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 40 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 351004-T1096NL
Ultra Librarian 3D Model Ultra Librarian T1096NL CAD Model

Description

The 351004-T1096NL is a dual T1/E1 pulse transformer manufactured by Pulse.

  • Type: Dual T1/E1 Pulse Transformer
  • Manufacturer: Pulse
  • Inductance: 1mH
  • Mounting Type: Surface Mount
  • Operating Temperature: 0°C to 70°C
  • Size: 0.505" L x 0.280" W (12.83mm x 7.11mm)
  • Package: Tube
  • Standard Package: 40 pieces
  • Common Use: Telecommunications and networking equipment
