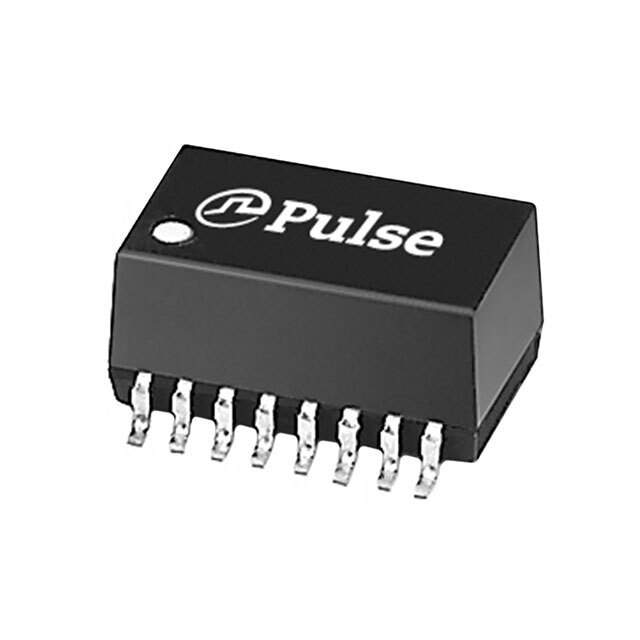

ST7010QNL Real Image
Same model may have multiple batches, images only for reference.

ST7010QNL

Part No ST7010QNL
Manufacturer Pulse
Catalog Pulse Transformers
Description MDL,SIN,10D,2:1,SM,TU | PULSE XFMR 1CT:1.414CT 1CT:1CT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type LAN 10G Base-T
Inductance 18μH, 60μH, 80μH, 175μH
Mounting Style SMD
Parts Dimension 0.455" L x 0.275" W (11.56mm x 6.99mm)
Height - Seated (Maximum) 0.225" (5.72mm)
Temperature Range - Operating 0°C ~ 70°C
Manufacturer Pack Quantity 45
MSL Level 1 (Unlimited)
Win Source Part Number 1260371-ST7010QNL
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ST7010QNL CAD Model

Description

The Pulse Electronics Network transformer 1260371-ST7010QNL is a medium popularity component in the transformer category.

  • Mounting Style: SMD
  • Transformer Type: LAN 10G Base-T
  • Inductance: 18μH, 60μH, 80μH, 175μH
  • Operating Temperature: 0°C to 70°C
  • Manufacturer Pack Quantity: 45
  • MSL Level: 1 (Unlimited)
  • Dimensions: 0.455" L x 0.275" W (11.56mm x 6.99mm)
