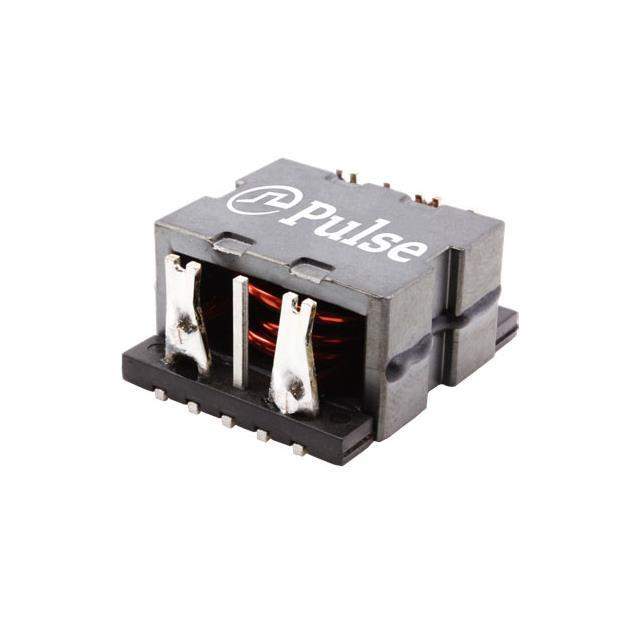

PH9408.254NLT Real Image
Same model may have multiple batches, images only for reference.

PH9408.254NLT

Part No PH9408.254NLT
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 32A 2LN 580 OHM SMD / 2 Line Common Mode Choke Surface Mount 580 Ohms @ 2.03 MHz 32A DCR 1.7mOhm
Datasheet
PH9408.254NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Pulse Electronics
Series PH9408
Package Tape & Reel
Number of Lines 2
Impedance @ Frequency 580 Ohms @ 2.03 MHz
Current Rating (Max) 32A
DC Resistance (DCR) (Max) 1.7mOhm
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 1.201" L x 1.063" W (30.50mm x 27.00mm)
Height (Max) 0.591" (15.00mm)
Package / Case Nonstandard
Standard Package 60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1338656-PH9408.254NLT
Ultra Librarian 3D Model Ultra Librarian PH9408.254NLT CAD Model

Description

The PH9408 series of common mode chokes from Pulse Electronics is a highly efficient and reliable solution for filtering common mode noise in electronic circuits.

  • Maximum Current: 32A
  • Impedance: 580 Ohms @ 2.03 MHz
  • Package: Surface Mount
  • Temperature Range: -40°C to 125°C
  • DC Resistance (DCR): 1.7mOhm
