Same model may have multiple batches, images only for reference.

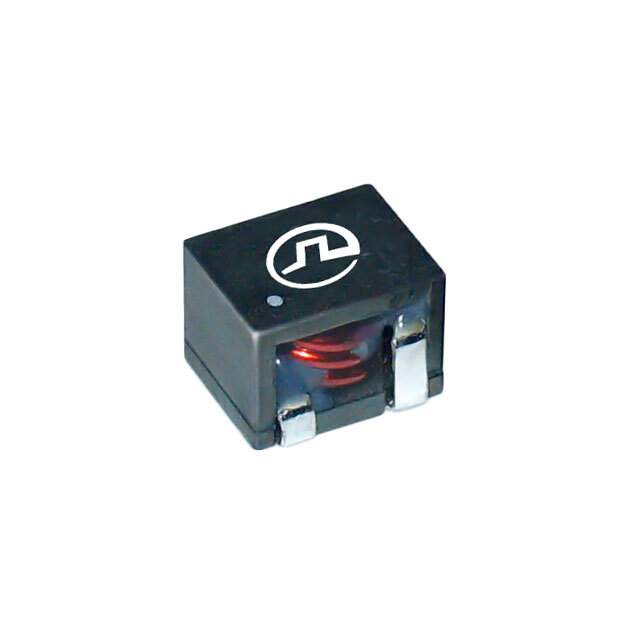

PG1083.503NLT Real Image
Same model may have multiple batches, images only for reference.

PG1083.503NLT

Part No PG1083.503NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 50UH 7.4A 32.6MOHM SMD / 50 µH Unshielded Wirewound Inductor 7.4 A 32.6mOhm Max Nonstandard
Datasheet
PG1083.503NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PG1083NL
Package Tape & Reel (TR)
Type Wirewound
Inductance 50 µH
Tolerance ±20%
Current Rating (Amps) 7.4 A
Current - Saturation (Isat) 10A
Shielding Unshielded
DC Resistance (DCR) 32.6mOhm Max
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.854" L x 0.846" W (21.70mm x 21.50mm)
Height - Seated (Max) 0.492" (12.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 100
Win Source Part Number 1161827-PG1083.503NLT
Ultra Librarian 3D Model Ultra Librarian PG1083.503NLT CAD Model

Description

The PG1083.503NLT is a wirewound inductor from Pulse Electronics Power.

  • Inductance: 50 µH
  • Tolerance: ±20%
  • Shielding: Unshielded
  • DC Resistance: 32.6mOhm Max
  • Height: 0.492" (12.50mm)
  • Dimension: 0.854" L x 0.846" W (21.70mm x 21.50mm)
  • Technology: Surface Mount Technology (SMT)
  • Packaging: Tape and Reel
