Same model may have multiple batches, images only for reference.

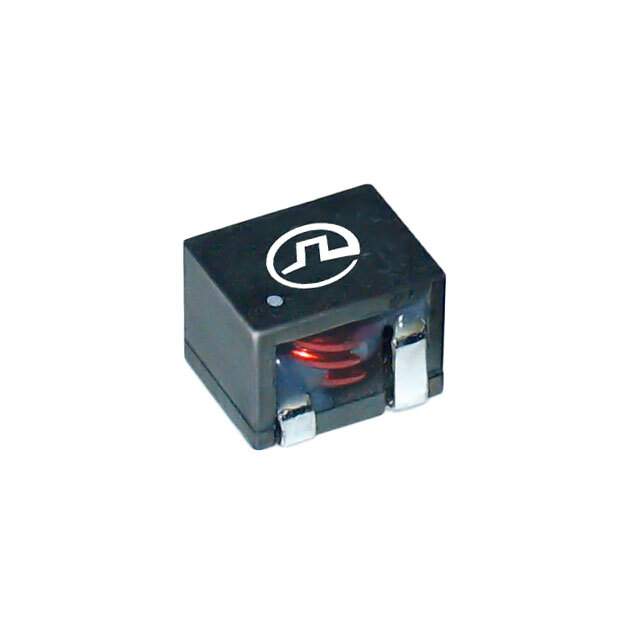

PG1083.103NLT Real Image
Same model may have multiple batches, images only for reference.

PG1083.103NLT

Part No PG1083.103NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 10.5UH 17.5A 6MOHM SMD / 10.5 µH Unshielded Wirewound Inductor 17.5 A 6mOhm Max Nonstandard
Datasheet
PG1083.103NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PG1083NL
Package Tape & Reel (TR)
Type Wirewound
Inductance 10.5 µH
Tolerance ±20%
Current Rating (Amps) 17.5 A
Current - Saturation (Isat) 22.5A
Shielding Unshielded
DC Resistance (DCR) 6mOhm Max
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.854" L x 0.846" W (21.70mm x 21.50mm)
Height - Seated (Max) 0.492" (12.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 100
Win Source Part Number 1029367-PG1083.103NLT
Ultra Librarian 3D Model Ultra Librarian PG1083.103NLT CAD Model

Description

The PG1083.103NLT is a fixed inductor manufactured by Pulse Electronics Power.

  • Series: PG1083NL
  • Market Popularity: Low
  • Design: High inductance with low DC resistance
  • Features: Compact size
  • Suitable for: Power supplies, DC-DC converters, and filters
  • Current Rating: 17.5 A
  • Saturation Current: 22.5A
