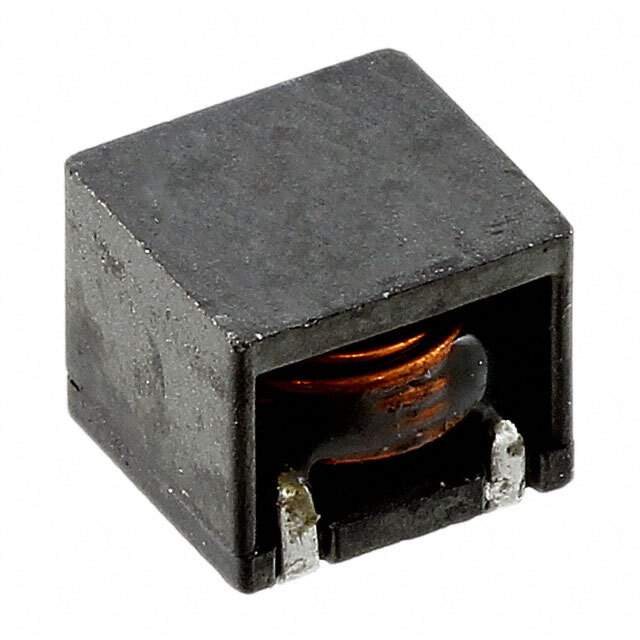

Same model may have multiple batches, images only for reference.

PG0871.102NLT

Name: PG0871.102NLT
Brand: Pulse
SKU: 985306
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PG0871.102NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 1UH 17.5A 2.3 MOHM SMD / 1 µH Shielded Wirewound Inductor 17.5 A 2.3mOhm Nonstandard
Datasheet	PG0871.102NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	PG0871NL
Package	Tape & Reel
Type	Wirewound
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	17.5 A
Current - Saturation (Isat)	17.5A
Shielding	Shielded
DC Resistance (DCR)	2.3mOhm
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.299" L x 0.291" W (7.60mm x 7.40mm)
Height - Seated (Max)	0.252" (6.40mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	PG0871.102NLT-ND,553-3864-1,553-3864-2,553-3864-6
Standard Package	700
Win Source Part Number	985306-PG0871.102NLT
Ultra Librarian 3D Model	Ultra Librarian PG0871.102NLT CAD Model

Alternative Products

Description

The Pulse PG0871.102NLT is a wirewound inductor with an inductance of 1 µH and a current rating of 17.5 A.

Shielded: Yes
DC resistance: 2.3mOhm
RoHS compliant: Yes
Temperature range: -40°C to 130°C
Termination: SMD (SMT)
Category: Inductors, Coils, Chokes>Fixed Inductors
Radiation Hardened: No
