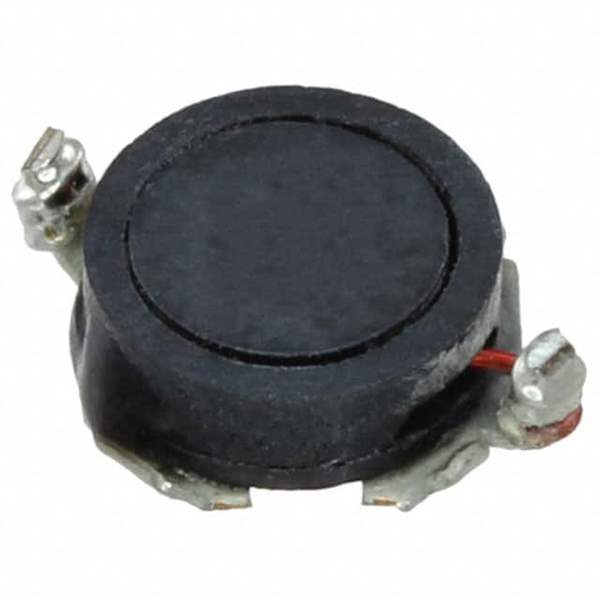

PG0085.472NLT
Same model may have multiple batches, images only for reference.

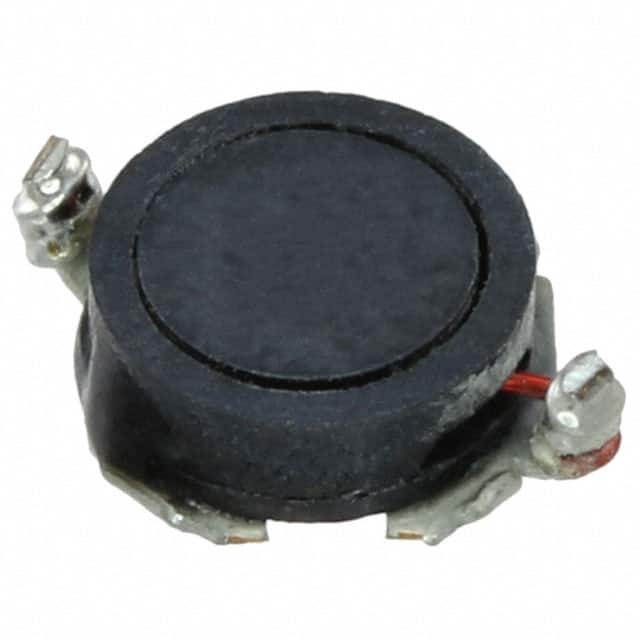

PG0085.472NLT

Part No PG0085.472NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 4.7UH 860MA 100MOHM SM
Datasheet
PG0085.472NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series PG0085NL
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 860 mA
Current - Saturation (Isat) 860mA
Shielding Shielded
DC Resistance (DCR) 100mOhm Max
Frequency - Self Resonant 40MHz
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.169" L x 0.169" W (4.30mm x 4.30mm)
Height - Seated (Max) 0.071" (1.80mm)
Standard Package 2,850 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 930310-PG0085.472NLT
Ultra Librarian 3D Model Ultra Librarian PG0085.472NLT CAD Model

Description

The 930310-PG0085.472NLT is a fixed inductor from the PG0085NL series.

  • Series: PG0085NL
  • Type: Wirewound
  • Shielded: Yes
  • Package: Tape and reel
  • Inductance: 4.7μH
  • Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Height: 0.071" (1.80mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 100mOhm max
  • Operating Temperature: -40°C to 130°C
  • Current Rating: 860mA
  • Frequency Test: 100kHz
  • Manufacturer: Pulse
