Same model may have multiple batches, images only for reference.

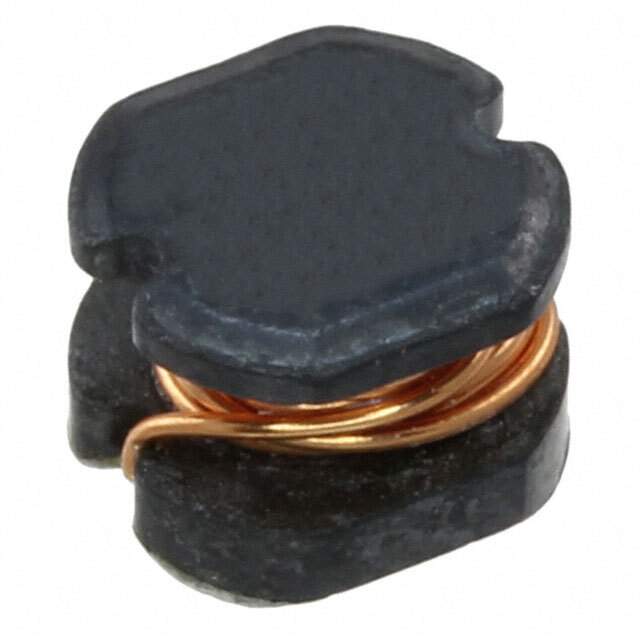

PF0580.822NLT Real Image
Same model may have multiple batches, images only for reference.

PF0580.822NLT

Part No PF0580.822NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 8.2UH 1.2A 111 MOHM
Datasheet
PF0580.822NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 8.2μH
Tolerance ±15%
Current Rating 1.2A
Current - Saturation 1.2A
DC Resistance (DCR) 111 mOhm Max
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height - Seated (Max) 0.137" (3.48mm)
Win Source Part Number 209862-PF0580.822NLT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PF0580.822NLT CAD Model

Description

The Pulse Electronics Corporation PF0580.822NLT is a wirewound surface-mount technology (SMT) component used for inductor, coil, and choke applications. It has a current rating of 1.2A and an inductance of 8.2μH with a tolerance of ±15%.

  • Manufacturer: Pulse Electronics Corporation.
  • Component Type: Wirewound SMT Inductor.
  • Current Rating: 1.2A.
  • Inductance: 8.2μH.
  • Tolerance: ±15%.
  • DC Resistance (DCR): 111 mOhm Max.
  • Package: Reel - TR.
  • Temperature Range: -40°C to 125°C.
