Same model may have multiple batches, images only for reference.

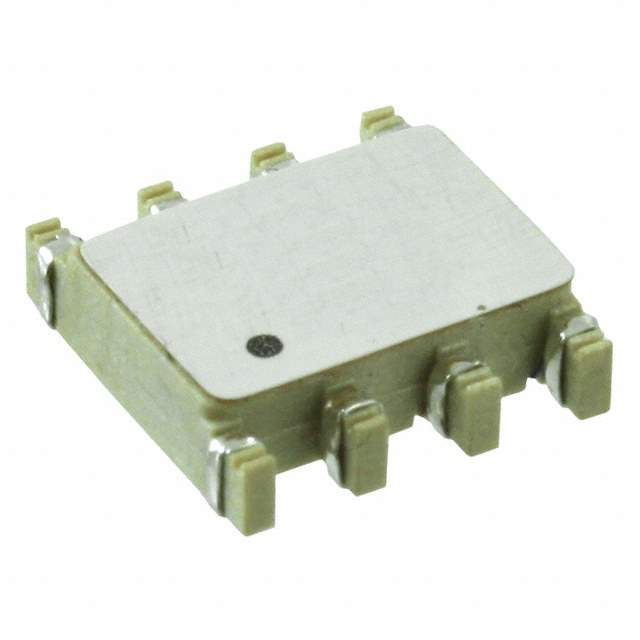

PE-65854NLT Real Image
Same model may have multiple batches, images only for reference.

PE-65854NLT

Part No PE-65854NLT
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 4LN SMD
Datasheet
PE-65854NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 4
DC Resistance (DCR) (Max) 400 mOhm
Temperature Range - Operating 0°C to 70°C
Mounting SMD (SMT)
Height (Max) 0.098" (2.50mm)
Dimension Vertical, 8 Flat Lead
Win Source Part Number 209776-PE-65854NLT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PE-65854NLT CAD Model

Description

The Pulse Electronics Corporation 209776-PE-65854NLT is a signal line filter with four lines.

  • Height: 0.098 inches (2.50mm)
  • Mounting: SMD (SMT) mounting
  • DC Resistance (DCR): 400 mOhm
  • Voltage Rating: DC
  • Filter Type: signal line
  • Approvals: No specific approvals
  • Current Rating (max): Not provided
  • Temperature Range: 0°C to 70°C
  • Category: Filters
  • Popularity: Medium
  • Part Dimensions: vertical with eight flat leads
