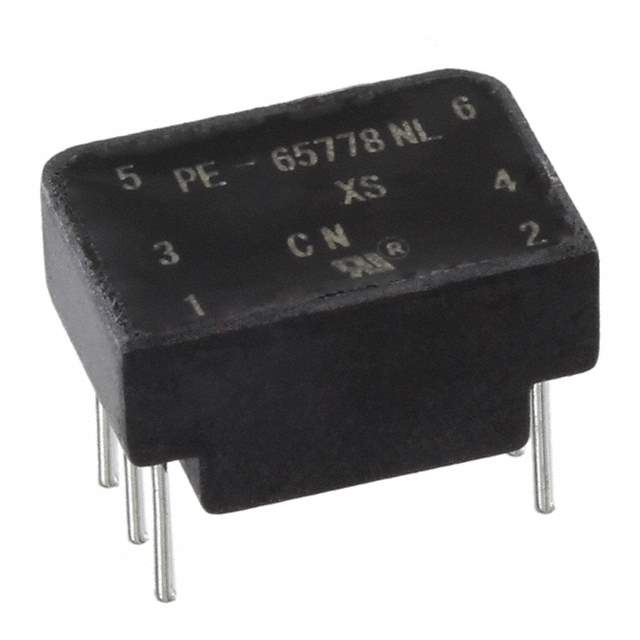

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Transformer Type T1/E1 (Single)
Inductance 1.2mH
Mounting Through Hole
Height - Seated (Max) 0.250" (6.35mm)
Weight 0.14 oz (3.99g)
Win Source Part Number 042089-PE-65778NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-65778NL CAD Model

Description

The Pulse Electronics Corporation transformer is a high-quality transformer designed for use in electronic devices.

  • Supply and demand status: limited
  • Type: T1/E1 (Single) transformer
  • Applications: power supplies, audio amplifiers, and other electronic devices
  • Manufacturer: Pulse Electronics Corporation
  • Win Source Part Number: 042089-PE-65778NL
