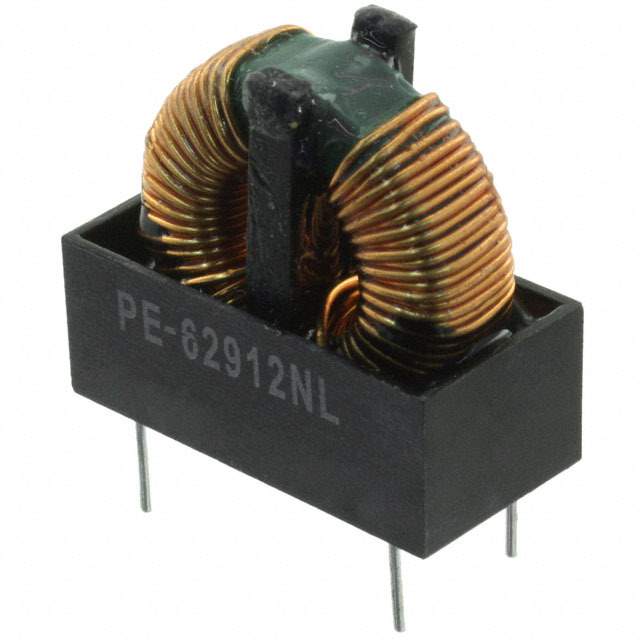

PE-62912NL Real Image
Same model may have multiple batches, images only for reference.

PE-62912NL

Part No PE-62912NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 3MH 3.5A 2LN TH
Datasheet
PE-62912NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Tray
Status Active
Number of Lines 2
Inductance @ Frequency 3mH @ 1kHz
Current Rating (Max) 3.5A
DC Resistance (DCR) (Max) 60 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Height (Max) 1.160" (29.46mm)
Dimension Vertical, 4 PC Pin
Win Source Part Number 209758-PE-62912NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-62912NL CAD Model

Description

This filter from Pulse Electronics Corporation is a high-quality electronic component that is ideal for use in various filter applications.

  • Manufacturer: Pulse Electronics Corporation
  • Current Rating: 3.5A
  • Inductance: 3mH @ 1kHz
  • Mounting Type: Through-hole
  • DC Resistance (DCR) (Max): 60 mOhm
  • Status: Active
  • Temperature Range: -40°C to 125°C
  • Supply and Demand Status: Limited
