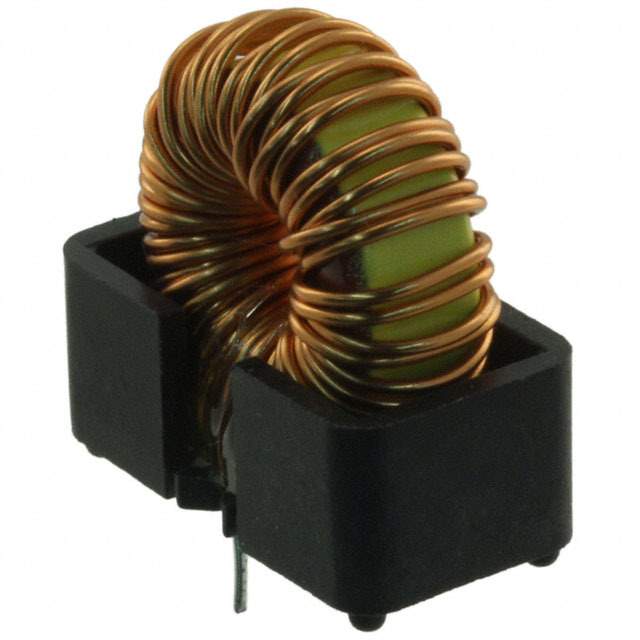

PE-54039NL Real Image
Same model may have multiple batches, images only for reference.

PE-54039NL

Part No PE-54039NL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 53UH 3A 80 MOHM TH / 53 µH Shielded Toroidal Inductor 3 A 80mOhm Radial, Vertical (Open)
Datasheet
PE-54039NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Pulse Electronics
Packaging Tray
Type Toroidal
Inductance 53 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Shielding Shielded
DC Resistance (DCR) 80mOhm
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 20 kHz
Mounting Through Hole
Case / Package Radial, Vertical (Open)
Size / Dimension 0.830" L x 0.450" W (21.09mm x 11.43mm)
Height - Seated (Max) 0.950" (24.13mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number PE54039NL,553-1542,PE-54039NL-ND
Standard Package 55
Win Source Part Number 1327525-PE-54039NL
Ultra Librarian 3D Model Ultra Librarian PE-54039NL CAD Model

Description

The PE-54039NL fixed inductor is a toroidal inductor designed by Pulse Electronics.

  • Inductance: 53µH
  • Height: 24.13mm
  • Temperature Range: -40°C to 130°C
  • Packaging: Tray
  • Weight: 0.005 lbs
  • Dimension: 0.830" L x 0.450" W (21.09mm x 11.43mm)
  • Mounting: Through-hole
