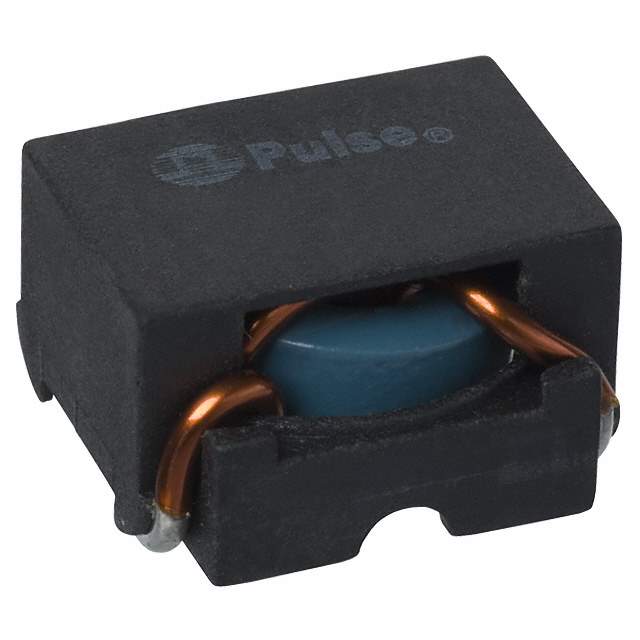

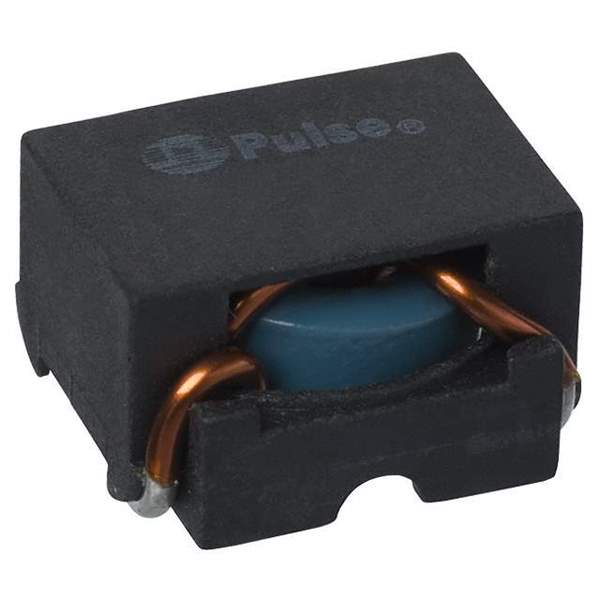

Same model may have multiple batches, images only for reference.

PE-53681NL

Name: PE-53681NL
Brand: Pulse
SKU: 791643
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PE-53681NL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 2.5UH 11.4A 5.4 MOHM / Inductor Power Toroid 4.2uH/2.5uH 11.4A 0.0054Ohm DCR
Datasheet	PE-53681NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Pulse Electronics Corporation
Series	SLIC
Packaging	Bulk
Type	Toroidal
Inductance	2.5μH
Current Rating	11.4A
Shielding	Unshielded
DC Resistance (DCR)	5.4 mOhm Max
Operating Temperature Range	-40°C ~ 130°C
Mounting	SMD
Package	Nonstandard
Dimension	0.670" L x 0.670" W (17.02mm x 17.02mm)
Height - Seated (Maximum)	0.390" (9.91mm)
Win Source Part Number	791643-PE-53681NL
Popularity	Medium
Supply and Demand Status	Balance
Family Name	SLIC
ECCN	EAR99
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian PE-53681NL CAD Model

Alternative Products

Description

The Pulse Electronics Corporation 791643-PE-53681NL component is a toroidal type inductor, coil, choke that comes in bulk packaging.

Supply and Demand Status: Balanced
Operating Temperature: -40°C to 130°C
Maximum Seated Height: 0.390" (9.91mm)
Dimension: 0.670" L x 0.670" W (17.02mm x 17.02mm)
Inductance: 2.5μH
DC Resistance: 5.4 mOhm Max
