Same model may have multiple batches, images only for reference.

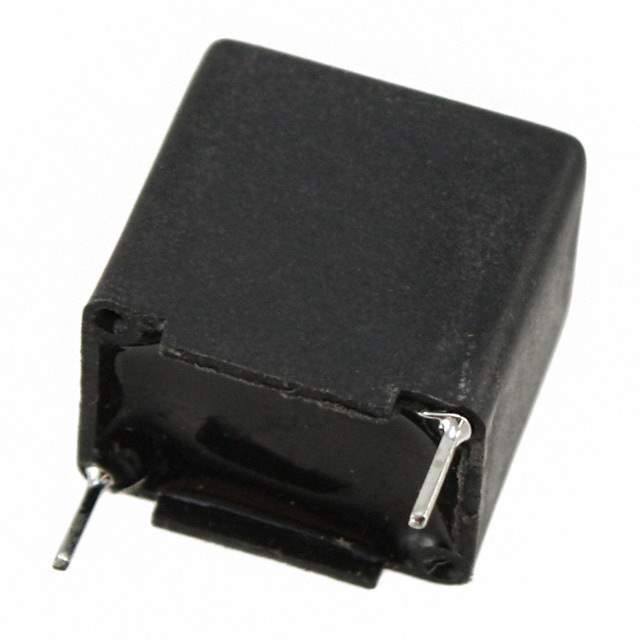

PE-52645NL Real Image
Same model may have multiple batches, images only for reference.

PE-52645NL

Part No PE-52645NL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 150UH 1.7A 420 MOHM TH
Datasheet
PE-52645NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 19 Weeks
Features Unshielded Toroidal Inductor 420mOhm Max Radial, Vertical - Corner Terminals -
Manufacturer Pulse
Package Tube
Operating Temperature Range -40°C ~ 130°C
Mounting Through Hole
Package Radial, Vertical - Corner Terminals
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 553-1806-5, PE-52645NL-ND, PE52645NL
Quantity per package 40
Popularity High
Supply and Demand Status Balance
Win Source Part Number 930211-PE-52645NL
Ultra Librarian 3D Model Ultra Librarian PE-52645NL CAD Model

Description

The 930211-PE-52645NL is an unshielded toroidal inductor manufactured by Pulse.

  • Manufacturer: Pulse
  • Maximum Resistance: 420mOhm
  • Temperature Range: -40°C to 130°C
  • Package: radial, vertical - corner terminals tube
  • Mounting Type: Through Hole
  • Category: inductors
  • ECCN: EAR99
  • Estimated Production Lead Time: 19 weeks
  • REACH: unaffected
  • HTSUS: 8504.50.4000
  • Other Part Numbers: 553-1806-5, PE-52645NL-ND, and PE52645NL
