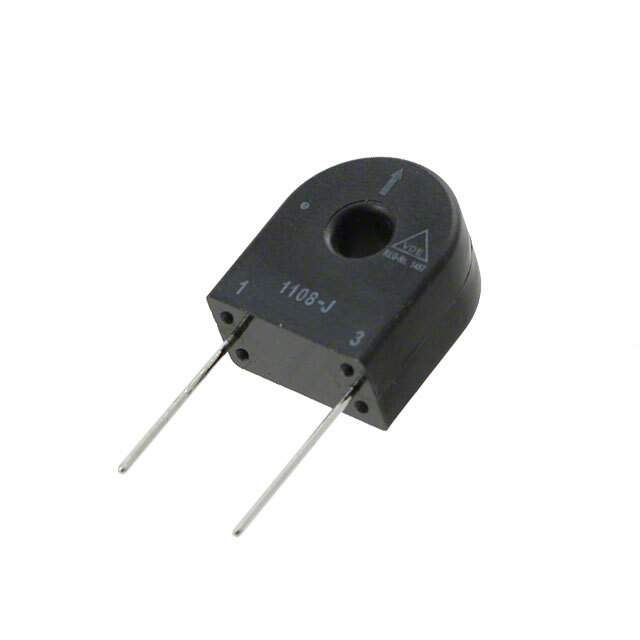

PE-51686NL Real Image
Same model may have multiple batches, images only for reference.

PE-51686NL

Part No PE-51686NL
Manufacturer Pulse
Catalog Current Sense Transformers
Description INDUCTOR CURR SENSE 5.0MH T/H
Datasheet
PE-51686NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tray
Status Active
Frequency Range 20kHz to 200kHz
Type Invasive
Current Rating 20A
Inductance 5mH
DC Resistance (DCR) 50 Ohm Primary, 700 mOhm Secondary
Mounting Through Hole
Height - Seated (Max) 0.800" (20.32mm)
Termination Style PC Pin
Win Source Part Number 045685-PE-51686NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-51686NL CAD Model

Description

The Pulse Electronics Corporation Transformer is a high-quality component that is designed to meet the needs of a variety of electronic devices.

  • Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Manufacturer: Pulse Electronics Corporation
  • Win Source Part Number: 045685-PE-51686NL
  • Type: Invasive transformer
  • Current Rating: 20A
  • Inductance: 5mH
