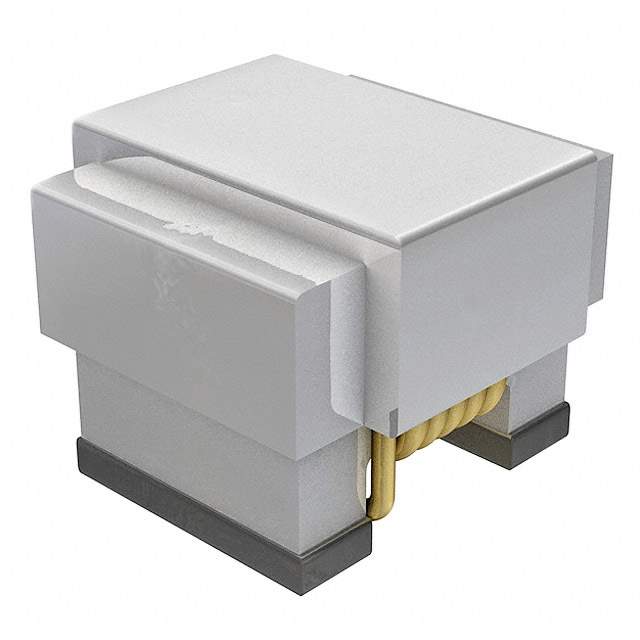

PE-0805CD820JTT Real Image
Same model may have multiple batches, images only for reference.

PE-0805CD820JTT

Part No PE-0805CD820JTT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 82.7NH 400MA 420 MOHM / 82.7 nH Unshielded Drum Core, Wirewound Inductor 400 mA 420mOhm Max 0805 (2012 Metric)
Datasheet
PE-0805CD820JTT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Pulse Electronics
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 82.7 nH
Tolerance ±5%
Current Rating (Amps) 400 mA
Shielding Unshielded
DC Resistance (DCR) 420mOhm Max
Q @ Freq 60 @ 500MHz
Frequency - Self Resonant 1.3GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 150 MHz
Mounting Surface Mount
Case / Package 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Size / Dimension 0.090" L x 0.066" W (2.29mm x 1.68mm)
Height - Seated (Max) 0.062" (1.58mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 2,000
Win Source Part Number 1327553-PE-0805CD820JTT
Ultra Librarian 3D Model Ultra Librarian PE-0805CD820JTT CAD Model

Description

The Pulse Electronics 1327553-PE-0805CD820JTT is a drum core, wirewound inductor with an unshielded design.

  • Type: drum core, wirewound
  • Shielding: unshielded
  • Size: 0.090" L x 0.066" W (2.29mm x 1.68mm)
  • Inductance: 82.7 nH
  • Height - Seated (Max): 0.062" (1.58mm)
  • Tolerance: ±5%
  • Mounting Type: surface mount
  • Core Material: ceramic
  • Q @ Freq: 60 @ 500MHz
  • Frequency - Self Resonant: 1.3GHz
  • DC Resistance (DCR): 420mOhm Max
  • Current Rating: 400 mA
  • RoHS Compliant: true
