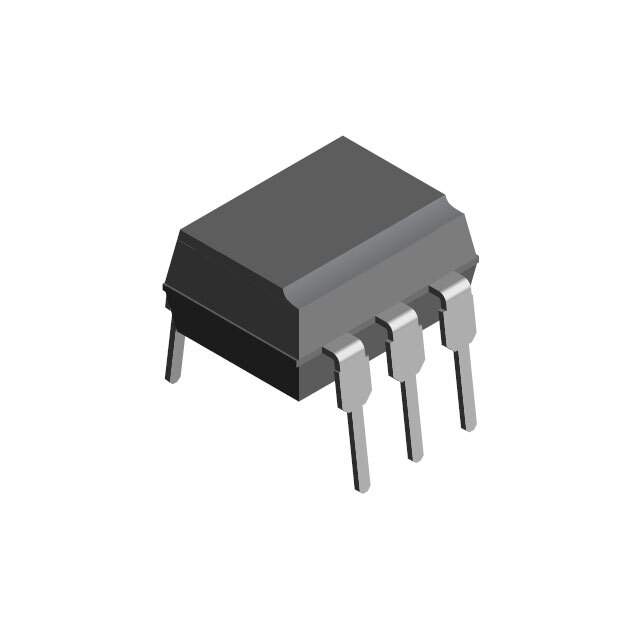

CNY117-4 Real Image
Same model may have multiple batches, images only for reference.

CNY117-4

Part No CNY117-4
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 6DIP / Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP
Datasheet
CNY117-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay Semiconductor Opto Division
Packaging Tube
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Minimum) 160% @ 10mA
Current Transfer Ratio (Maximum) 320% @ 10mA
Turn On / Turn Off Time (Typ) 3μs, 2.3μs
Rise / Fall Time (Typ) 2μs, 2μs
Input Type DC
Output Type Transistor with Base
Output Voltage MAX 70V
Output Current per Channel 50mA
Voltage - Forward (Vf) (Typ) 1.39V
Current - DC Forward (If) (Maximum) 60mA
Vce Saturation (Maximum) 400mV
Operating Temperature Range -55°C ~ 110°C
Mounting Style Through Hole
Package 6-DIP (0.300", 7.62mm)
Manufacturer Package 6-DIP
Win Source Part Number 771679-CNY117-4
Popularity Medium
Supply and Demand Status Balance
Family Name CNY117
Introduction Date August 29, 2003
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian CNY117-4 CAD Model

Description

The CNY117-4 from Vishay Semiconductor Opto Division is a DC input transistor with base output optocoupler in a 6-DIP package.

  • Current Transfer Ratio: 160% to 320% @ 10mA
  • Vce saturation: 400mV
  • Output Voltage max: 70V
  • Rise/Fall Time: 2μs and 2.3μs
  • Turn on/turn off time: 3μs and 2.3μs
  • Input Type: DC
  • Output Type: transistor with base
  • Isolation Voltage: 5000Vrms
  • Operating Temperature Range: -55°C to 110°C
  • Applications: Power supplies, motor controls, and switching regulators.
