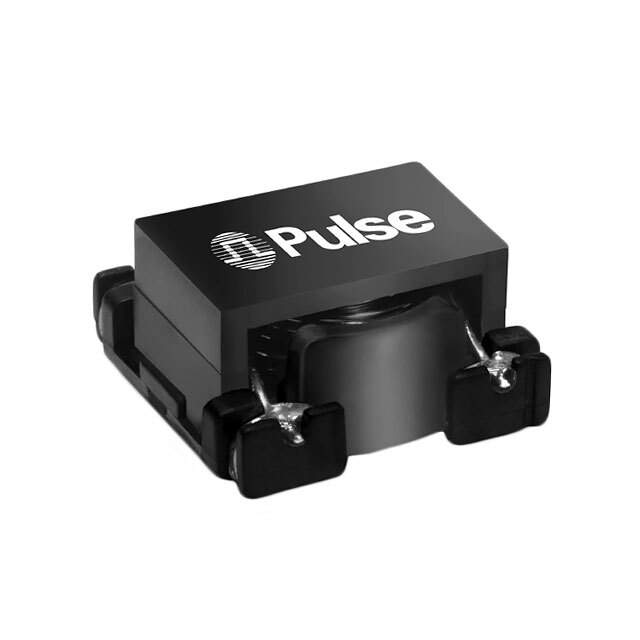

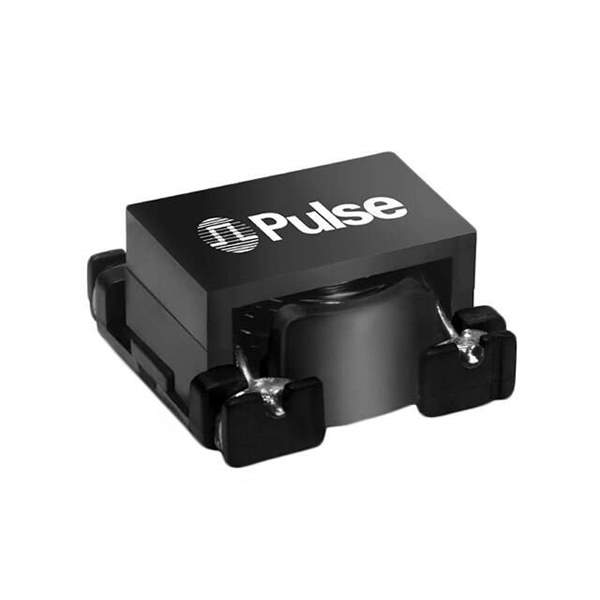

PD0120.223NL

Name: PD0120.223NL
Brand: Pulse
SKU: 1327668
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PD0120.223NL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 23.1UH 5.3A 35.5 MOHM / 23.1 µH Unshielded Wirewound Inductor 5.3 A 35.5mOhm Max Nonstandard
Datasheet	PD0120.223NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Pulse Electronics
Packaging	Tray
Type	Wirewound
Inductance	23.1 µH
Tolerance	±10%
Current Rating (Amps)	5.3 A
Current - Saturation (Isat)	6.8A
Shielding	Unshielded
DC Resistance (DCR)	35.5mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.638" L x 0.628" W (16.20mm x 15.95mm)
Height - Seated (Max)	0.323" (8.20mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	553-2679,-PD0120.223NL,PD0120.223NL-ND
Standard Package	90
Win Source Part Number	1327668-PD0120.223NL
Ultra Librarian 3D Model	Ultra Librarian PD0120.223NL CAD Model

Alternative Products

Description

The Pulse Electronics 1327668-PD0120.223NL is a wirewound inductor that belongs to the category of fixed inductors.

Shielding: Unshielded
Size: 0.638" L x 0.628" W (16.20mm x 15.95mm)
Inductance: 23.1 µH
Maximum Seated Height: 0.323" (8.20mm)
Tolerance: ±10%
DC Resistance (DCR): 35.5mOhm Max
Operating Temperature: -40°C to 125°C
RoHS Compliant: Yes
Current Rating: 5.3Amps
Mounting Type: Surface Mount
Case/Package: Non-standard
