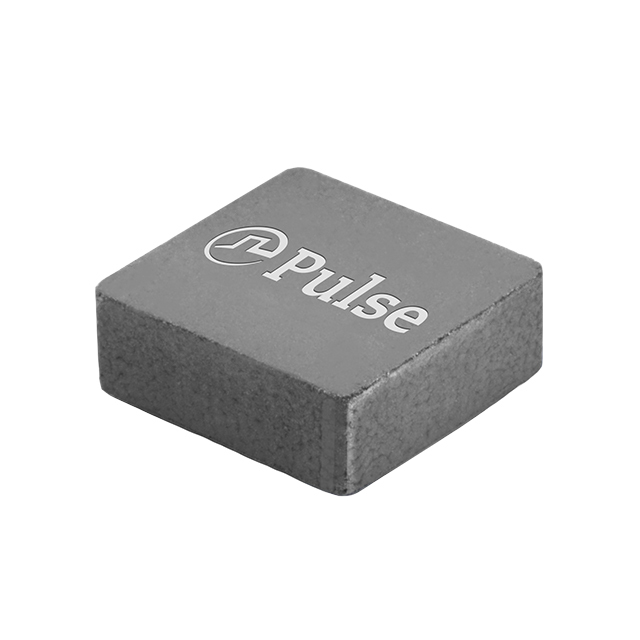

PA5001.361NLT

Part No PA5001.361NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 360NH 14.5A 6.3MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Type Molded
Material - Core Ferrite
Inductance 360 nH
Tolerance ±20%
Current Rating (Amps) 14.5 A
Current - Saturation (Isat) 17A
Shielding Shielded
DC Resistance (DCR) 6.3mOhm Max
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.161" L x 0.161" W (4.10mm x 4.10mm)
Height - Seated (Max) 0.083\
Ultra Librarian 3D Model Ultra Librarian PA5001.361NLT CAD Model

Description

NULL
