Same model may have multiple batches, images only for reference.

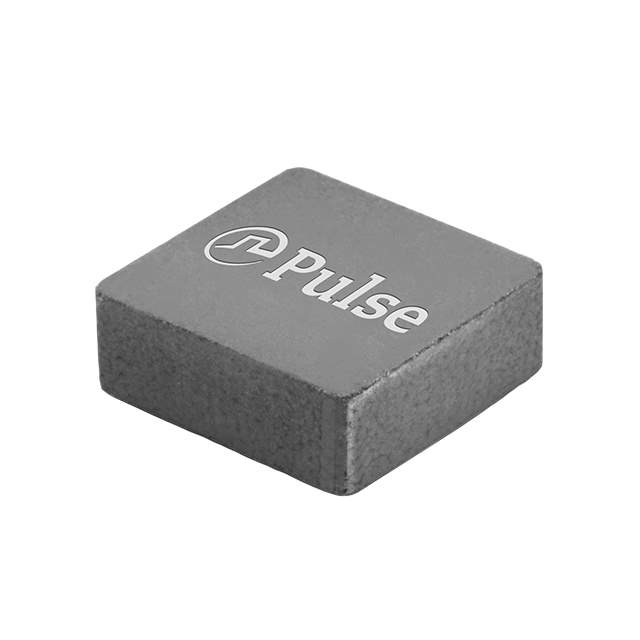

PA5001.401NLT Real Image
Same model may have multiple batches, images only for reference.

PA5001.401NLT

Part No PA5001.401NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 400NH 14A 7.73MOHM SMD / 400 nH Shielded Molded Inductor 14 A 7.73mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PA5001.XXXNLT
Package Tape & Reel
Type Molded
Material - Core Ferrite
Inductance 400 nH
Tolerance ±20%
Current Rating (Amps) 14 A
Current - Saturation (Isat) 15.5A
Shielding Shielded
DC Resistance (DCR) 7.73mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.161" L x 0.161" W (4.10mm x 4.10mm)
Height - Seated (Max) 0.083" (2.10mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 553-4165-2,553-4165-1,553-4165-6,-1536-PA5001.401NLTCT,PA5001.401NLT-ND
Standard Package 3,000
Win Source Part Number 1011564-PA5001.401NLT
Ultra Librarian 3D Model Ultra Librarian PA5001.401NLT CAD Model

Description

The 1011564-PA5001.401NLT is a molded type inductor with a shielded package.

  • Inductance: 400 nH
  • Mounting Type: Surface Mount
  • Tolerance: ±20%
  • Height: 0.083" (2.10mm)
  • Current Rating: 14 A
  • DC Resistance (DCR): 7.73mOhm Max
  • Standard Package: 3,000
  • Temperature Range: -40°C ~ 125°C
  • HTSUS: 8504.50.4000
